SKU: TUL1.1/2TH-SKF

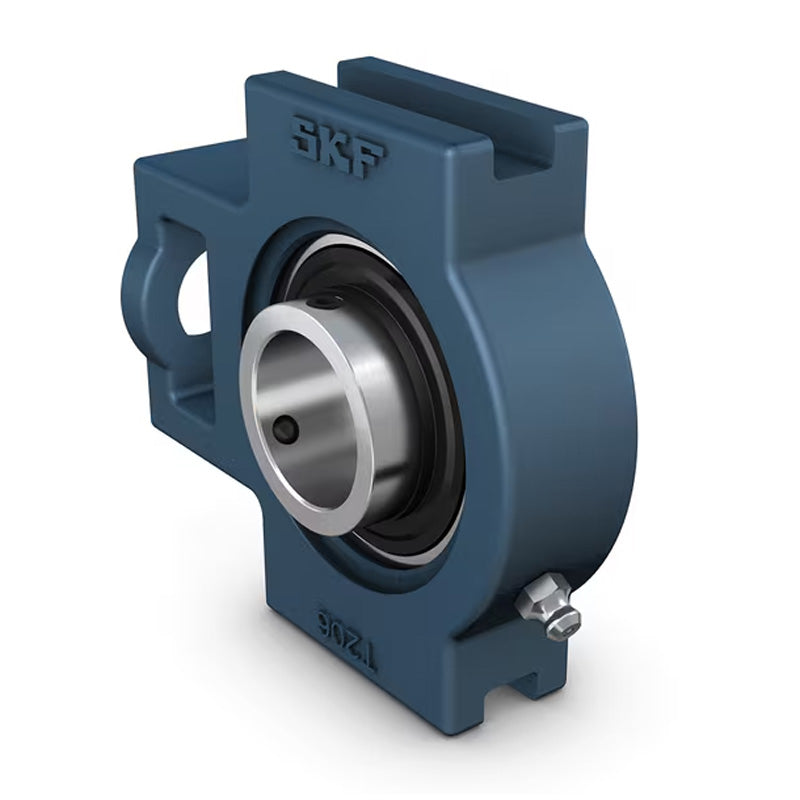

SKF TUL1-1/2TH Polyester Housing Food Ind Grub Screw Take Up Unit 1-1/2 inch
SKF TUL1-1/2TH Polyester Housing Food Ind Grub Screw Take Up Unit 1-1/2 inch
Out of stock
Description
Description
|
SKF Y-bearing Take Up Units for the Food Industry: Developed specifically for food and beverage applications. The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy. These units are lubricated with food-grade grease. Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- TUL
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| A | 33.4mm |
| A1 | 16mm |
| A2 | 32mm |
| B | 49.2mm |
| H | 114mm |
| H1 | 102mm |
| H2 | 40mm |
| L | 140mm |
| L1 | 85mm |
| L2 | 80mm |
| G | M16 |
| G1 | 21mm |
| s1 | 30.2mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 24.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 2800 rpm |
| A5 | 33.5mm |
| A6 | 33.5mm |
| Weight | 0.93 kg |
| Compatible end cover closed | ECL208 |
| Compatible end cover open | ECL208-108B |
