SKU: TSML16R-ISB
ISB TSML16R Left Hand Maintenance Free Steel/PTFE Lined Plain Female Rod End M16 Thread
ISB TSML16R Left Hand Maintenance Free Steel/PTFE Lined Plain Female Rod End M16 Thread
Equivalent to: TSML16R
Out of stock
Share this product
Description
Description
TSF - TSM Series Rod End Bearings:: This series is constructed with C 45 improved and forged steel; the surfaces are protected from external corrosive agents, thanks to a galvanised zinc covering. They are available with internal and external threading, to the right and the left and they are provided with greasers or bores for lubrication.
- Brand / Quality:
- ISB-Good Quality
- Thread Size:
- M16x2
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Bore:
- 16
- Inside Diameter:
- 16
- Material:
- Steel/PTFE Lined
Technical

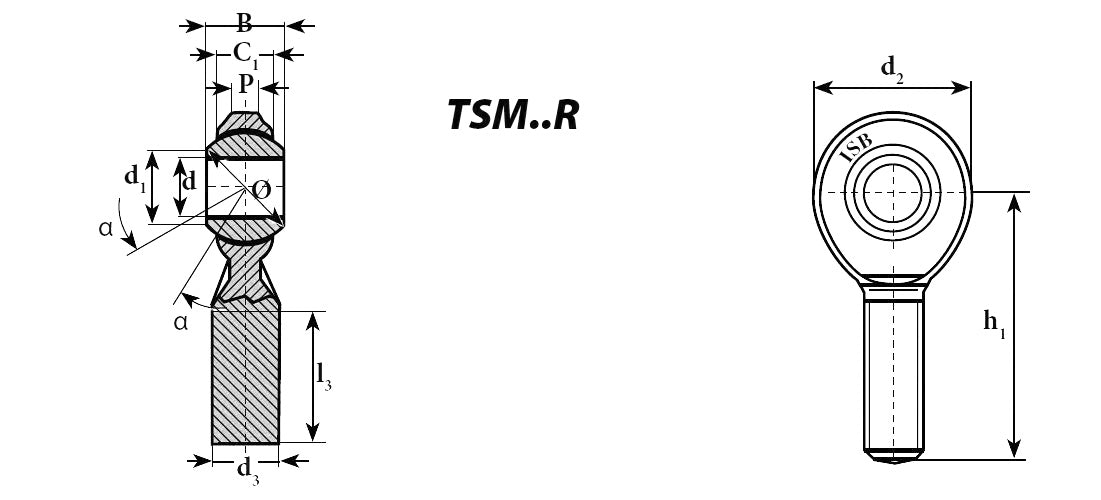

Technical
| d | 16mm |
|---|---|
| d1 | 19.3mm |
| d2 | 38mm |
| d3 | M 16x2mm |
| B | 21mm |
| C1 | 13mm |
| h1 | 66mm |
| I3 | 40mm |
| P | 7.5mm |
| Ø | 28.58mm |
| α | 15° |
| Static C0 | 17.46KN |
| Weight | 0.181Kg |
