• SKF TMMK10-35 Multi-purpose Combi Kit
1 1

SKU: TMMK10-35-SKF

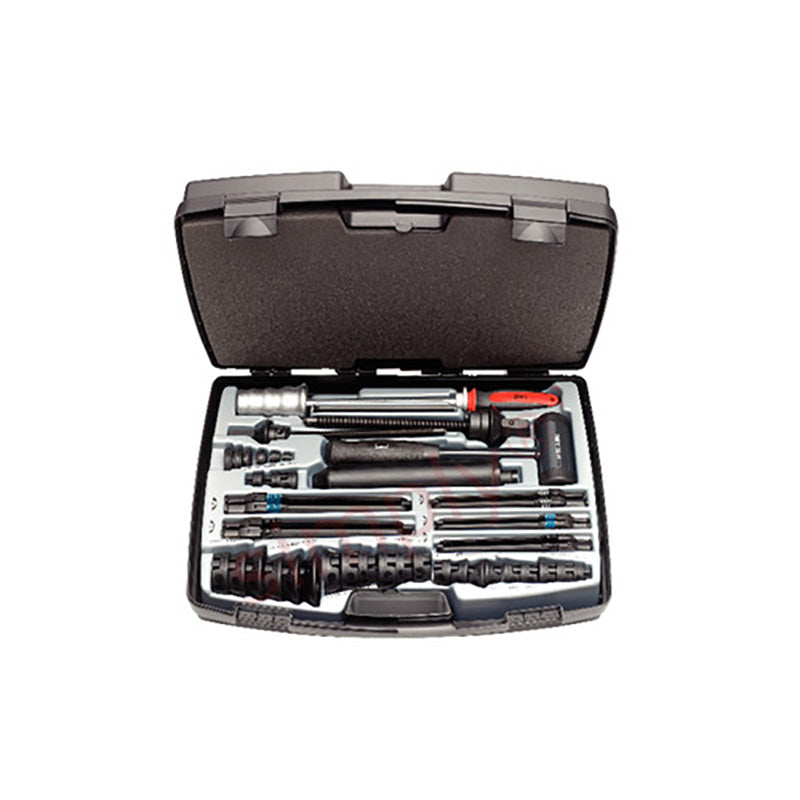

SKF TMMK10-35 Multi-purpose Combi Kit

SKF TMMK10-35 Multi-purpose Combi Kit
€1.252,95 ex VAT
€1.252,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €951,92
19+ €898,44
29+ €887,75
39+ €877,05
49+ €866,36
74+ €855,66
99+ €802,18
199+ €791,49
249+ €780,79
499+ €770,09
999+ €748,70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
TMMK10-35: The SKF Combi Kit TMMK 10-35 is designed for quick and precise mounting of bearings with bore diameters from 10 to 35 mm and for dismounting deep groove ball bearings from shafts, housings and blind housings from the same range. For mounting, a multipurpose fitting tool is included which is suitable for mounting bearings as well as bushings, seal rings, belt pulleys and other similar products. For dismounting of deep groove ball bearings from blind housings and shafts, the SKF Combi kit contains a unique three armed puller.When dismounting deep groove ball bearings from housings, a combination of this puller, sliding hammer and support rings enables easy removal of bearings.
Benefits: All parts are clearly arranged in the case for easy selection and identification
Case Dimensions: 530x110x360mm (20.9x4.3x14.2 in)
Brand / Quality:
SKF - High Quality
Technical
Description SKF Combi Kit
Number of Impact Rings 24 (12 size A and 12 size B)
Number of Sleeves 2 (size A and Size B)
Impact Rings Bore Diameter 10-35mm (0.39-2.1 in)
Impact Rings Outer Diameter 26-80mm (1.0-4.7 in)
Impact Sleeves Bore Diameter 18 and 37mm (0.7 and 1.4 in)
Dead-blow Hammer TMFT 36-H, Weight 1.0kg
Shaft Support Rings 10,12,15,17,20,25,30 and 35mm
Effective Puller Arm Length A1-135mm, A2-135mm, A3-137mm, A4-162mm, A5-167mm
Spindle Hexagon Heads 19mm and 24mm
Sliding Hammer Displacement 182mm (7.16 in)
Sliding Hammer Weight 1.0kg
