• SKF TMMA120 Mechanical EasyPull 75-250mm / 3.0-9.8in
1 1

SKU: TMMA120-SKF

SKF TMMA120 Mechanical EasyPull 75-250mm / 3.0-9.8in

SKF TMMA120 Mechanical EasyPull 75-250mm / 3.0-9.8in
€835,95 ex VAT
€835,95 ex VAT
Sale Sold out

Equivalent to: TMMA8

In stock

Price Break
10+ €634,61
19+ €598,96
29+ €591,83
39+ €584,70
49+ €577,57
74+ €570,43
99+ €534,78
199+ €527,65
249+ €520,52
499+ €513,39
999+ €499,13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

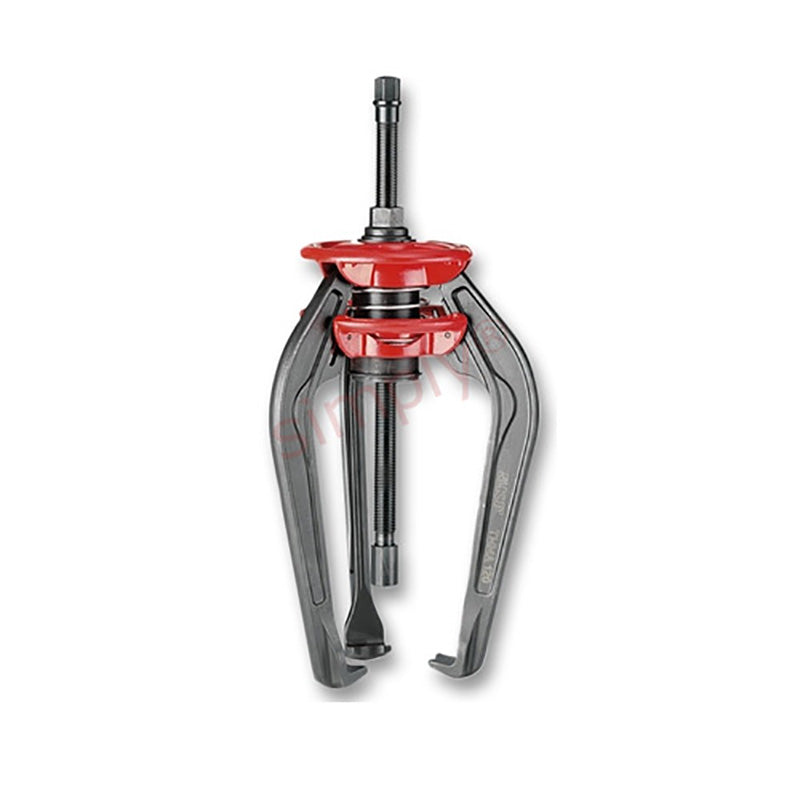

SKF Mechanical EasyPull TMMA Series: Equipped with spring-operated arms and a solid design, SKF's patented EasyPull is one of the most user-friendly and safe tools on the market. Ergonomically designed, the spring-operated arms enable the user to position the puller behind the component with just one movement. The unique red rings spring-operated opening mechanism allows the EasyPull to be placed behind the component with one movement of the hands
Benefits: Sturdy design allows dismounting of components even in the tightest application in a safe manner. Double hexagonal heads allow easier application of withdrawal force.
Note: Self-locking arms help prevent the risk of puller slipping under load
Brand / Quality:
SKF - High Quality
Technical
Width of Grip External, min 75mm (3.0 in.)
Width of Grip External, max 250mm (9.8 in.)
Effective Arm Length 250mm (9.8 in.)
Maximum Withdrawal Force 120 kN (13.5 ton US)
Claw Height 13.8mm (0.54 in.)
Claw Length 24mm (0.9 in.)Claw Width
40mm (1.6 in.) Hexagon on Puller or Adapter
32mm Hexagon on Mechanical Spindle
24mm Max Torque
265 Nm (195 lbf ft) Diameter Nose Piece
28mm (1.1 in.) N/A
