• SKF TMBS50E Strong Back Puller 7-50mm Shaft Diameter Range
1 1

SKU: TMBS50E-SKF

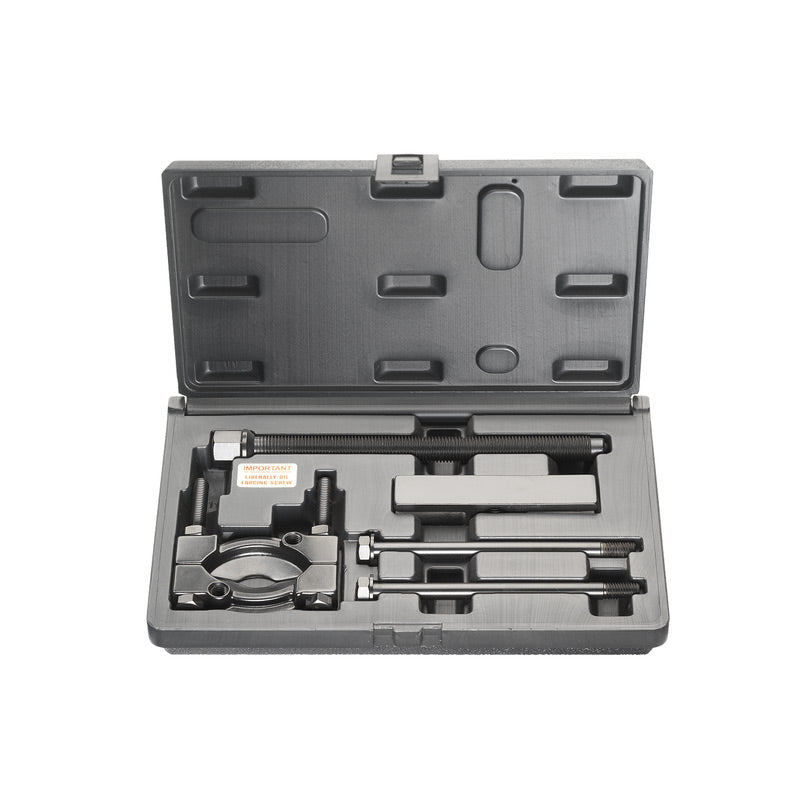

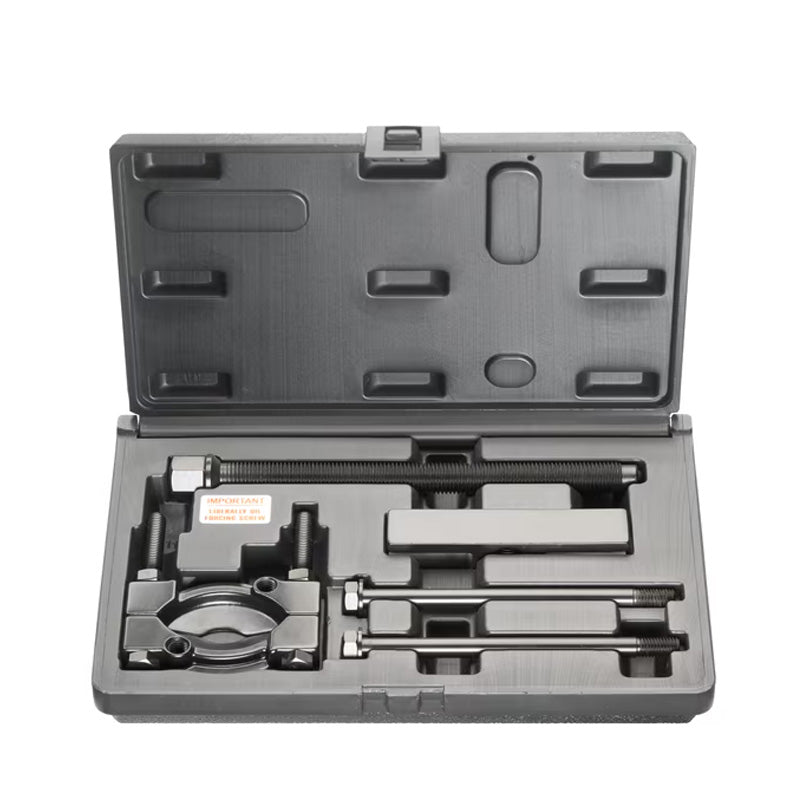

SKF TMBS50E Strong Back Puller 7-50mm Shaft Diameter Range

SKF TMBS50E Strong Back Puller 7-50mm Shaft Diameter Range
€270,95 ex VAT
€270,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €205,63
19+ €194,07
29+ €191,76
39+ €189,45
49+ €187,14
74+ €184,83
99+ €173,28
199+ €170,97
249+ €168,66
499+ €166,35
999+ €161,73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF TMBS Strong Back Puller: The SKF TMBS E strong back pullers facilitate dismounting of bearings in applications where the use of traditional jaw pullers is restricted due to lack of space or where the application demands a long reach. TMBS 100E and the TMBS 150E bearing extractors are equipped with a hydraulic spindle, which allows for effortless application of force up to 100 kN (11.2 ton US). The TMBS 50E is equipped with a mechanical spindle for force generation. Special bearing separator design allows the puller to be easily inserted between the bearing and the shoulder on the shaft, even in the tightest spaces. The firm grip behind the bearing's inner ring reduces the force required to dismount the bearing.
Brand / Quality:
SKF - High Quality
Technical
Separator Set 1 Piece
Mechanical Spindle 1 Piece
Beam 1 Piece
Main Rods 2 Pieces
Nominal Working Force 30 kN (3.4 US ton)
Maximum Reach 110mm (4.3 in.)
Shaft Diameter Range 7-50mm (0.3-2 in.)
Carrying Case Dimensions 295 x 190 x 55mm (11.6x7.5x2in.)
