• SKF TMBS100E Strong Back Puller 20-100mm Shaft Diameter Range
1 1

SKU: TMBS100E-SKF

SKF TMBS100E Strong Back Puller 20-100mm Shaft Diameter Range

SKF TMBS100E Strong Back Puller 20-100mm Shaft Diameter Range
€746,95 ex VAT
€746,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €567,62
19+ €535,73
29+ €529,35
39+ €522,97
49+ €516,60
74+ €510,22
99+ €478,33
199+ €471,95
249+ €465,57
499+ €459,20
999+ €446,44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

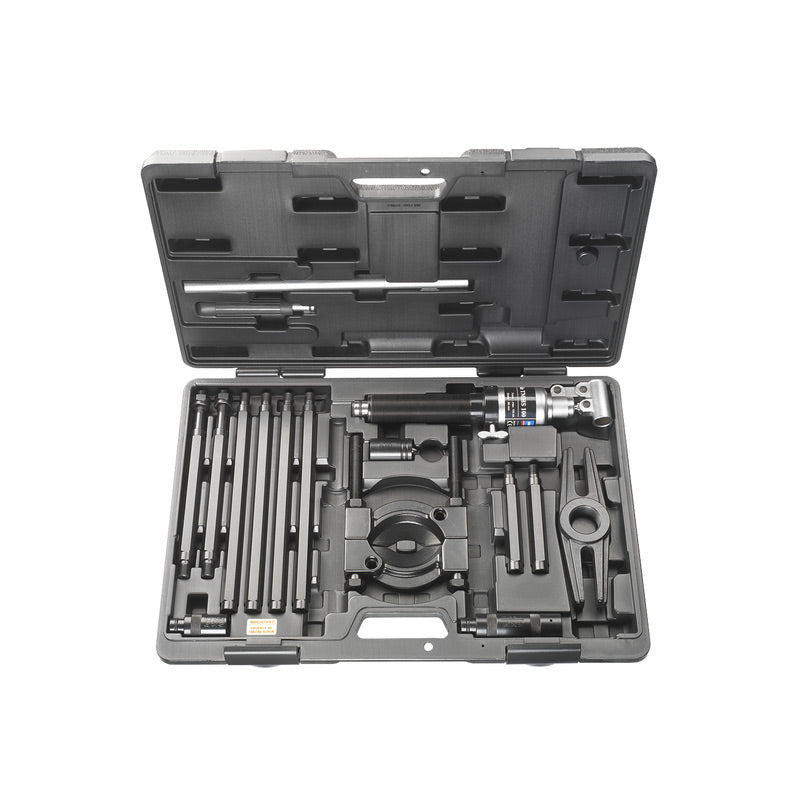

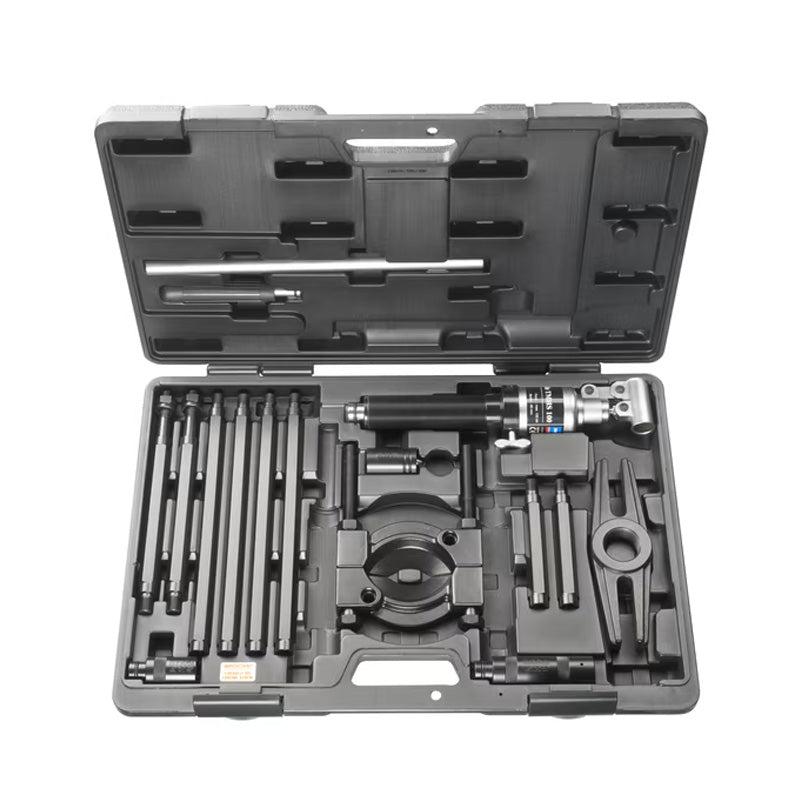

SKF TMBS Strong Back Puller: The SKF TMBS E strong back pullers facilitate dismounting of bearings in applications where the use of traditional jaw pullers is restricted due to lack of space or where the application demands a long reach. TMBS 100E and the TMBS 150E bearing extractors are equipped with a hydraulic spindle, which allows for effortless application of force up to 100 kN (11.2 ton US). The TMBS 50E is equipped with a mechanical spindle for force generation. Special bearing separator design allows the puller to be easily inserted between the bearing and the shoulder on the shaft, even in the tightest spaces. The firm grip behind the bearing's inner ring reduces the force required to dismount the bearing.
Brand / Quality:
SKF - High Quality
Technical
Separator Set 1 Piece
Main Rods 2 Pieces
Extension Rods, 125mm (4.9 in.) 2 Pieces
Extension Rods, 285mm (11.2 in.) 4 Pieces
Beam 1 Piece
Hydraulic Spindle TMHS100 1 Piece
Extension Pieces for Hydraulic Spindles 50, 100mm (2.0, 3.9 in.) 2 Pieces
Nose Piece with Centre Point for Hydraulic Spindle 1 Piece
Maximum Stroke 80mm (3.1 in.)
Nominal Working Force 100 kN (11.2 US ton)
Maximum Reach 120-816mm (4.7-31.1 in.)
Shaft Diameter Range 20-100mm (0.8-4 in.)
Threading Hydraulic Cylinder 1 1/2-16 UN
Carrying Case Dimensions 580 x 410 x 70mm (580x410x70 in.)
