SKU: TMBP20E-SKF

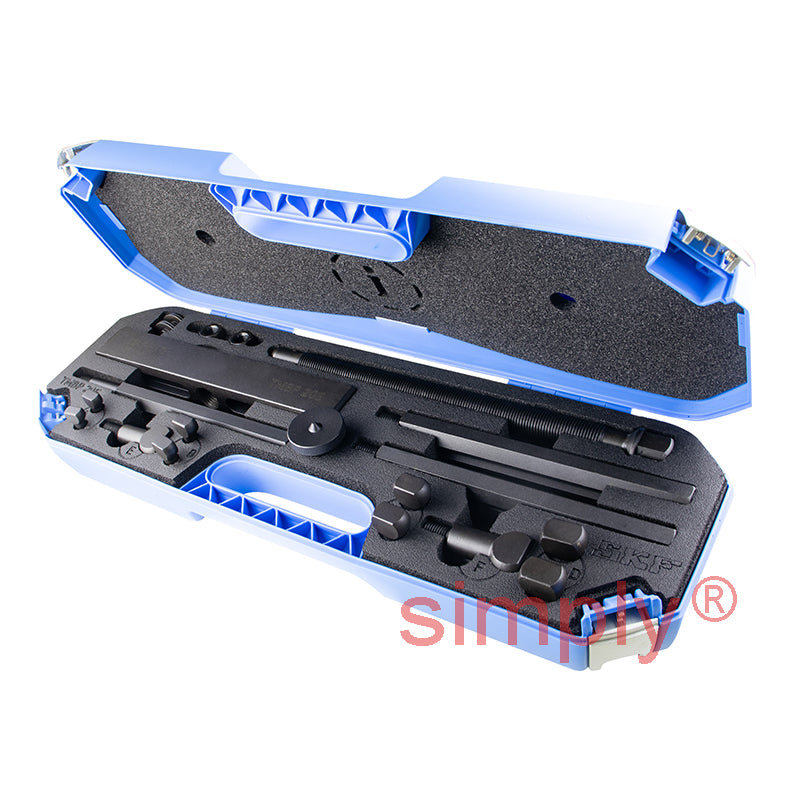

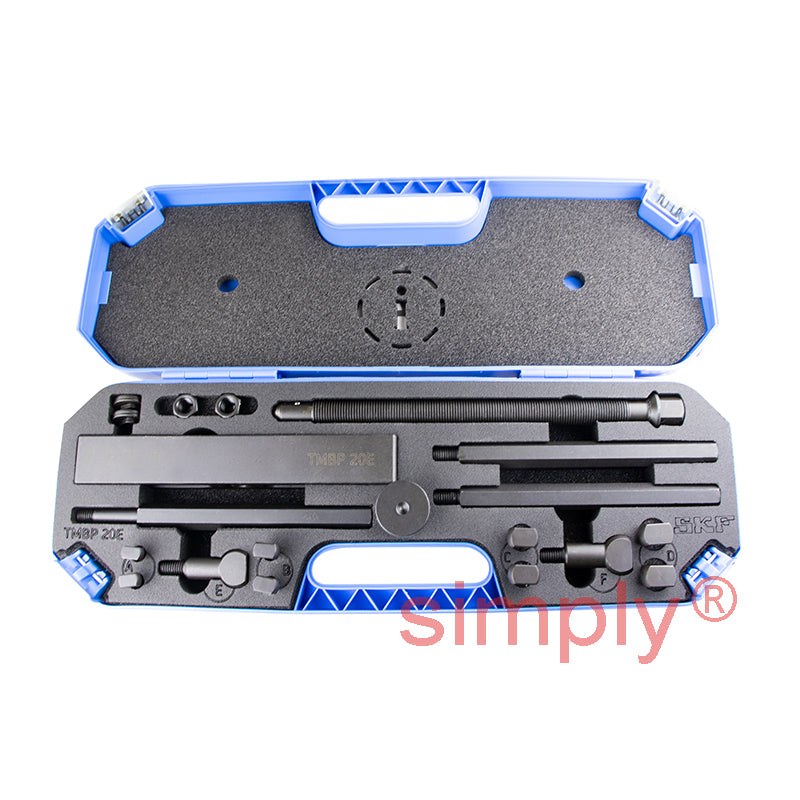

SKF TMBP20E Blind Housing Puller Kit 147-547mm / 5.8-21.5 in
SKF TMBP20E Blind Housing Puller Kit 147-547mm / 5.8-21.5 in
Regular price
€824,95
ex VAT
Regular price
Sale price
€824,95
ex VAT
In stock
Price Break
10+
€626,67
19+
€591,47
29+
€584,42
39+
€577,38
49+
€570,34
74+
€563,30
99+
€528,09
199+
€521,05
249+
€514,01
499+
€506,97
999+
€492,89
Quantity
Couldn't load pickup availability
Description
Description
|

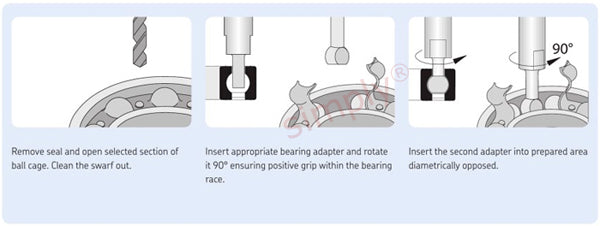

SKF Blind Housing Puller Kit: The TMBP 20E is an adapter type puller for dismounting deep groove ball bearings in blind housings (i.e. when accessing the ball bearing is not possible through the outer ring or through the bore) with shaft dimensions between 30 mm and 160 mm (1.18 in and 6.3 in). The use of extension rods allows a long reach of up to 583 mm (23 in). Spanner stop function on spindle for easy and safe handling. Special nose piece helps in minimizing damage to shaft and improves puller stability. Notes: SKF TMBP 20E is suitable for dismounting the following deep groove ball bearings: 6021-6032, 6213-6230, 6309-6320, 6406-6418, 16026-16032 |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| Adapters Sizes (2pcs each) | 6 Pieces |
|---|---|
| Main Rods (with Nut Support Rings and Nuts) | 2 Pieces |
| Extension Rods | 4 Pieces |
| Spindle | 1 Piece |
| Spindle Nose Piece | 1 Piece |
| Beam | 1 Piece |
| Effective Arm Length | 147-547mm (5.8-21.5 in.) |
| Maximum Pulling Force | 55 kN (6.2 US ton) |
| Dimensions of Case | 395x300x105mm (15.5x11.8x4.1 in.) |
