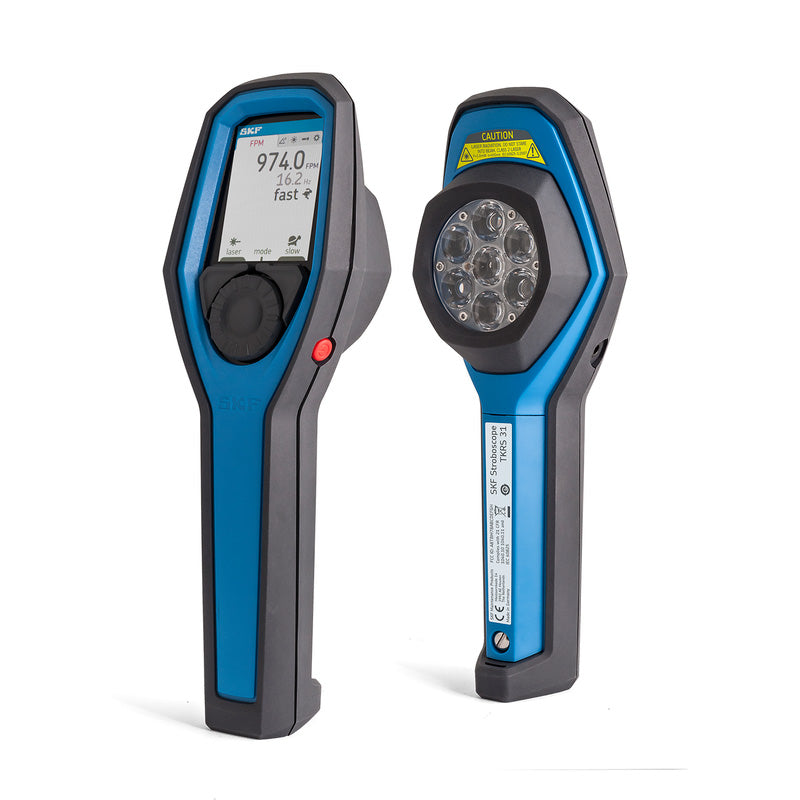

SKF TKRS31 Stroboscope 30-300000 flashes per minute
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
SKF TKRS Series: The SKF Stroboscopes are portable, compact, easy-to-use stroboscopes that enable the motion of rotating or reciprocating machinery to appear frozen. They allow such applications as fan blades, couplings, gear wheels, machine tool spindles and belt drives to be inspected while running. TKRS stroboscopes are useful for ODR programmes and are an essential instrument for maintenance technicians. Phase shift mode enables the viewing of the object of interest to be rotated to the correct position for viewing, especially useful for gear wheels and fan blade inspection. For ease of use for extended periods, they are equipped with a tripod mounting thread.
Note:Ergonomic controls enable the flash rate to be set in a matter of seconds. Supplied in a sturdy carrying case with universal charger
- Brand / Quality:
- SKF - High Quality
Technical
| Flash rate range | 30 to 300000 flashes per minute (f/min) |
|---|---|
| Flash rate accuracy | +0,005%(+1 digit at 23 deg C (73 F)) |
| Flash setting and display resolution | +0,1 (30 to 999,9 f/min) +1,0 (1000 to 300000 f/min) |
| Tachometer range | 30 to 300000 r/min |
| Tachometer accuracy | +0,02 % or +1 digit whichever is greater |
| Tachometer distance | up to 2 m at +/- 45 deg angle |
| Flash source | 6 LEDs |
| Brightness (Flash duration) | adjustable: 0,2 deg/ 1 u& |
| 39s whichever is bigger -5 deg/ 2 000 u& | 39s whichever is smaller |
| Light power | >56 00 lux at 3 deg flash duration and 0,3 m (12 in) distance |
| Flash colour | approx. 5000 - 8000 K |
| Power Source | 3 x AA batteries (included) |
| Run time ca. per change | ca. 3:45 h at 1 deg (100% display brightness)ca. 8:15 h at 0.2 deg (20% display brightness) |
| Display | Multi-line backlight TFT |
| Display update | Continuous |
| External tirgger input | Input: 3 - 30 V / max. 5 mA (NPN)Output: up to 30V / max 50 mA (NPN) |
| External trigger connection | Plug 3,5 mm (included) |
| EXTL. trigger range | 30 to 300 000 f/min |
| Controls | Direct selector switches and rotary/push knob |
| Signal modification | Edge selection, Divider, Delay |
| Housing Material | ABS (plastics) |
| Instrument dimensions | 225 x 78 x 50mm (8.9 x 3 x 2 inch) |
| Case dimensions | 260 x 85 x 180mm (10.2 x 3.3 x 7.1 inch) |
| Instrument weight (incl. batteries) | 0,3 kg (0,65 lb) |
| Total weight | 0,7 kg (1,7 lb) |
| Operating temperature | 0 to 40 deg C (32 to 104 F) |
| Storage temperature | -20 to+45 deg C (-4 to +113 F) |
| Type of protection for indication only | IP30 |
