• SKF THAP400E/K10 Air-driven Pump Set (upto 4000 bar)
1 1

SKU: THAP400E/K10-SKF

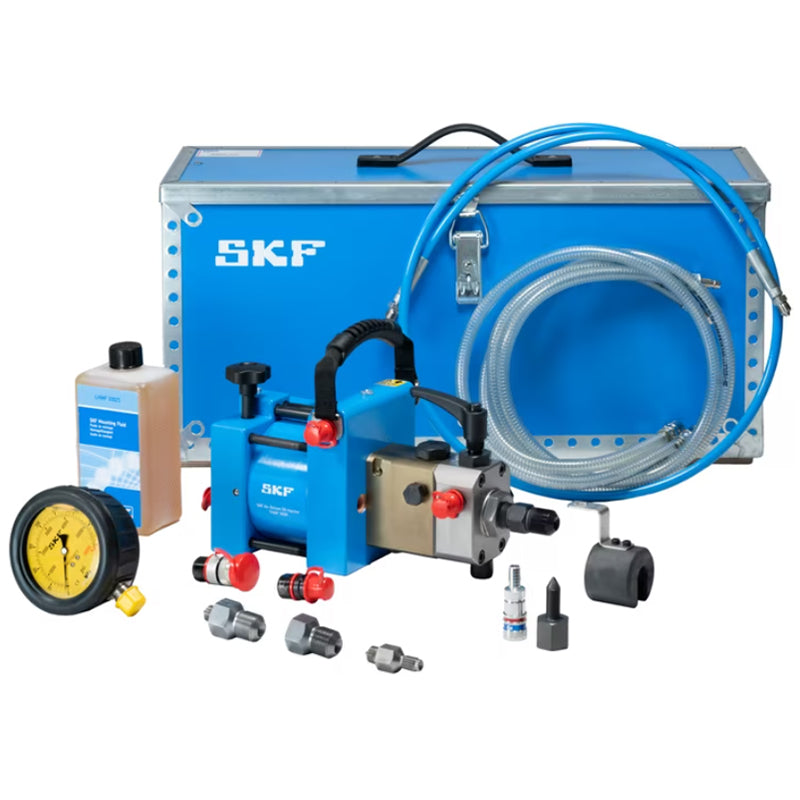

SKF THAP400E/K10 Air-driven Pump Set (upto 4000 bar)

SKF THAP400E/K10 Air-driven Pump Set (upto 4000 bar)
€10.545,95 ex VAT
€10.545,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €8.013,70
19+ €7.923,65
29+ €7.833,61
39+ €7.743,57
49+ €7.653,53
74+ €7.563,49
99+ €7.473,45
199+ €7.383,41
249+ €7.293,36
499+ €7.203,32
999+ €7.113,28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Air-driven Pump Set THAP Series: Air-driven pumps and oil injectors are used for mounting and dismounting OK couplings, for dismounting large pressure joints such as bearings, flywheels, couplings, railway wheels and in many similar applications. The pumps consist of a high pressure hydraulic pump, driven by an air piston. The units are supplied in a sturdy case including oil suction and return hoses with quick connect couplings. The air driven pumps can also be supplied in complete sets which consists of pump, pressure gauge, high pressure pipe and connection nipples.
Benefits: Time savings compared to hand operated pumps. Continuous supply of oil
Note: Portable
Brand / Quality:
SKF - High Quality
Technical
--- Technical Information
Maximum pressure 400 Mpa (4000 bar)
Volume per stroke 0.64 ml
Air Pressure 3-7 bar
Air Pressure Limiter Yes, 7 bar (Max)
Air Consumption 200 l/min
Pressure Ratio 1:667
Pressure Gauge Optional
Oil Container No
Oil Outlet G 3/4 thread
Oil Viscosity 1500mm (Max)
Operating Temperature 0 - 45 deg C
--- Dimensions and Weights
Dimensions 171x405x202mm
Case Dimensions 690x245x310mm
Product Weight 16.9 kg
Total Product Weight 21 kg
--- Product Contents
1x Air driven pump (400 MPa)
2x Low pressure hoses with couplings 1.5m (4.9ft)
1x Air hose coupling (f)
1x Mounting fluid 1L (0.22 gal)
1x Pressure gauge (400 MPa)
1x Protection sleeve (TMJG S100)
1x Protection device
1x Nipple G3/4 male, M16x1.5 cone female (400 MPa)
1x High pressure hose (400 MPa)
2x M16x1.5 cone male, 2m (6.5 ft.)
1x Quick connection coupling, M16x1.5 cone female (400 MPa)
1x Quick connection nipple, M16x1.5 cone female (400 MPa)
1x Nipple M16x1.5 cone male, G1/4 male (400 MPa)
1x Nipple M16x1.5 cone male, G3/4 male (400 MPa)
1x Instructions for use
1x Carrying case
