• SKF THAP300E Air-driven Oil Injector 300 Mpa (43500 psi)
1 1

SKU: THAP300E-SKF

SKF THAP300E Air-driven Oil Injector 300 Mpa (43500 psi)

SKF THAP300E Air-driven Oil Injector 300 Mpa (43500 psi)
€7.445,95 ex VAT
€7.445,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €5.658,26
19+ €5.594,69
29+ €5.531,11
39+ €5.467,54
49+ €5.403,96
74+ €5.340,38
99+ €5.276,81
199+ €5.213,23
249+ €5.149,66
499+ €5.086,08
999+ €5.022,50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Air-driven Oil Injector THAP Series: Air-driven pumps and oil injectors are used for mounting and dismounting OK couplings, for dismounting large pressure joints such as bearings, flywheels, couplings, railway wheels and in many similar applications. The pumps consist of a high pressure hydraulic pump, driven by an air piston. The units are supplied in a sturdy case including oil suction and return hoses with quick connect couplings. The air driven pumps can also be supplied in complete sets which consists of pump, pressure gauge, high pressure pipe and connection nipples.
Benefits: Time savings compared to hand operated pumps. Continuous supply of oil
Note: Portable
Brand / Quality:
SKF - High Quality
Technical
--- Technical Information
Maximum pressure 300 Mpa (3000 bar)
Volume per stroke 0.83 ml
Air Pressure 3-7 bar
Air Pressure Limiter Yes, 7 bar (Max)
Air Consumption 200 l/min
Pressure Ratio 1:500
Pressure Gauge Optional
Oil Container No
Oil Outlet G 3/4 thread
Oil Viscosity 1500mm (Max)
Operating Temperature 0 - 45 deg C
--- Dimensions and Weights
Dimensions 171x405x202mm
Case Dimensions 690x245x310mm
Product Weight 13 kg
Total Product Weight 21.5kg

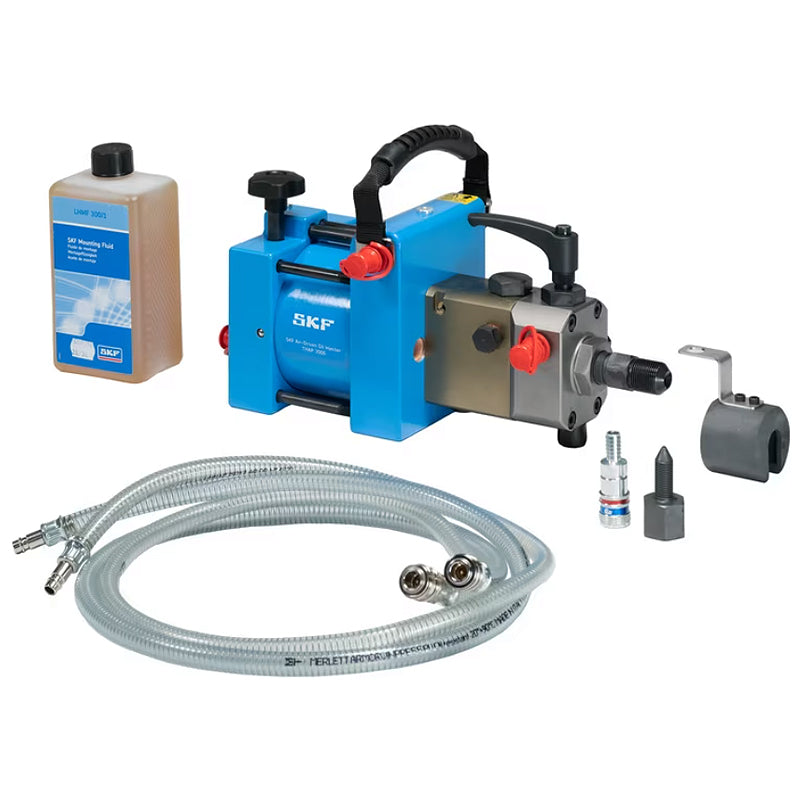

--- Product Contents
1x Air driven pump (300 MPa)
2x Low pressure hoses with couplings 1.5m (4.9ft)
1x Air hose coupling (f)
1x Mounting Fluid 1L (0.22 gal)
1x Instructions for use
1x Carrying case
