SKU: TBS-DS-16B-12
12 Tooth 16B Tapered Bore Double Simplex Sprocket 1 inch Pitch Chain
- Regular price
- €45,95 ex VAT
- Sale price
- €45,95
- Regular price
-
Not in stock
Quantity Price Breaks
5
€40,90
9
€38,60
19
€38,14
29
€37,68
49
€37,22
74
€36,76
99
€34,46
199
€34,00
249
€33,54
499
€33,08
999
€32,17
SKU:
TBS-DS-16B-12
12 Tooth 16B Tapered Bore Double Simplex Sprocket 1 inch Pitch Chain
- Regular price
- €45,95 ex VAT
- Sale price
- €45,95
- Regular price
-
Description
Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical

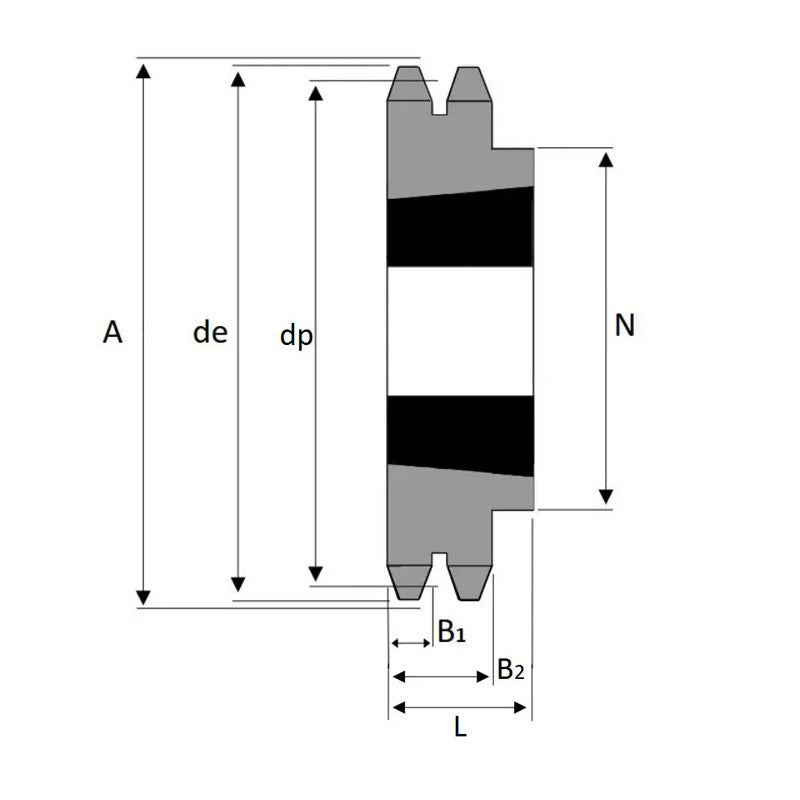

| No. of Teeth | = | 12 |
| Pitch Diameter dp | = | 98.14mm |
| Outer Diameter de | = | 109mm |
| Width B | = | 63.5mm |
| Hub Diameter N | = | 72mm |
| Chamfer C | = | 2.5mm |
| Tooth Radius r3 | = | 26mm |
| Tooth Width b1 | = | 16.2mm |
| Taper Bush Series | = | < |
| a href=" | = | advanced_search_result.php?& |
| keywords=1615+taperlock" | = | > |
| 1615< | = | span style=" |
| color:blue" | = | > |
| Click Here< | = | /span> |
| < | = | /a> |
| = | Weight | |
| 1.33 kg | = | N/A |
