SKU: TAF.223016

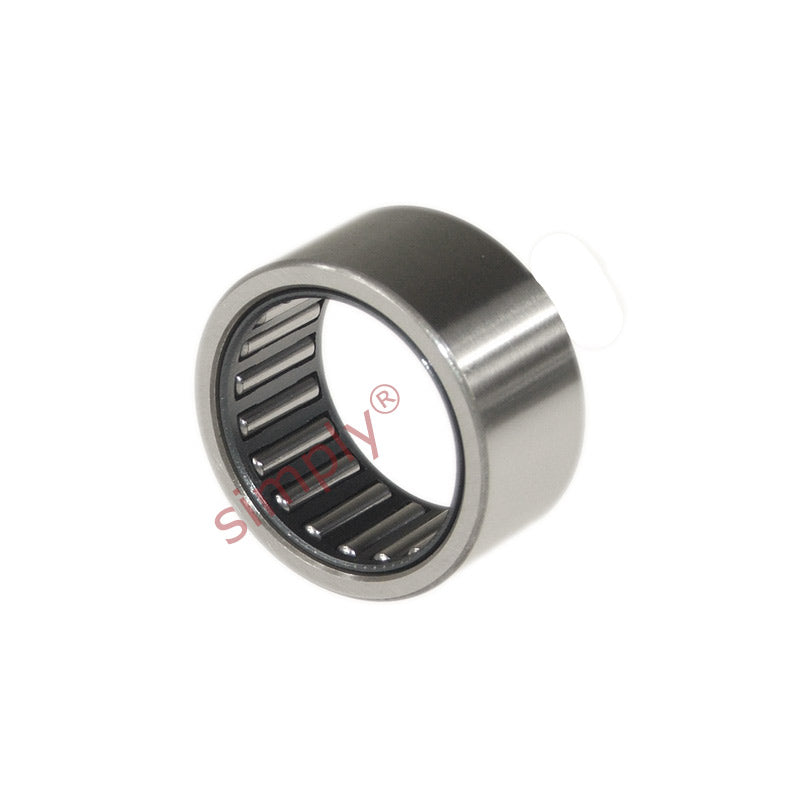

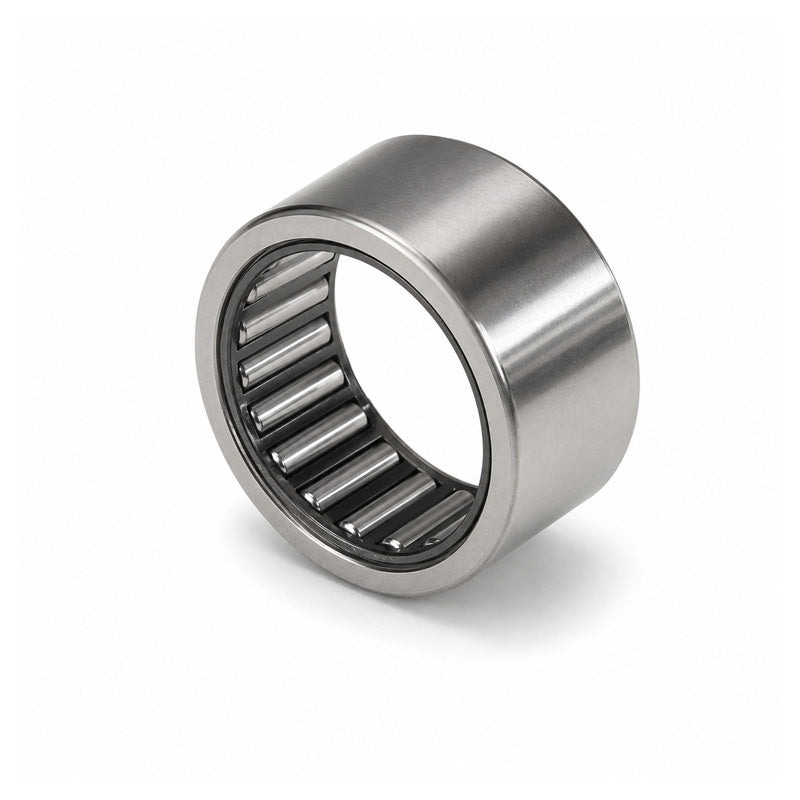

TAF223016 Needle Roller Bearing without Shaft Sleeve or Oil Groove 22x30x16mm
TAF223016 Needle Roller Bearing without Shaft Sleeve or Oil Groove 22x30x16mm
Regular price
€12,95
ex VAT
Regular price
Sale price
€12,95
ex VAT
Equivalent to: NK22/16 NK22/16A
In stock
Price Break
10+
€9,62
19+
€9,08
29+
€8,97
39+
€8,87
49+
€8,76
74+
€8,65
99+
€8,11
199+
€8,00
249+
€7,89
499+
€7,78
999+
€7,57
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Machined Type Needle Roller Bearings: Machined Type Needle Roller Bearings have an outer ring made by machining, heat treatment, and grinding. The outer ring has stable high rigidity and can be easily used even for light alloy housings. These bearings are available in various types and optimally selectable for different conditions such as heavy loads, high-speed and low-speed rotation. They are most suitable for general-purpose applications. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 30mm
- Width:
- 16mm
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 30mm |
| C | 16mm |
| Dynamic load C | 14200 N |
| Static load Co | 21600 N |
| Fatigue load limit Pu | 2650 N |
| Speed in grease | 12000 rpm |
| Speed in oil | 18000 rpm |
| r1r2 | 0.3mm |
| Da max | 28mm |
| ra max | 0.3mm |
| Seal | G/SD22x30x4 |
| Weight | 30g |
