SKF SYL25TH Plummer Block with Food-Grade Grease Grub Screw 25mm Insert
SKF SYL25TH Plummer Block with Food-Grade Grease Grub Screw 25mm Insert
Out of stock
Description
Description
|
SKF Y-bearing Plummer Block Units for the Food Industry: This unit is optimised for handling shock loads and high vibration levels. It incorporates a steel coil embedded in the polymer to provide high dimensional stability and excellent strength. The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy. These units are lubricated with food-grade grease. Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- SYL
- Bolt Hole Centres:
- 105mm

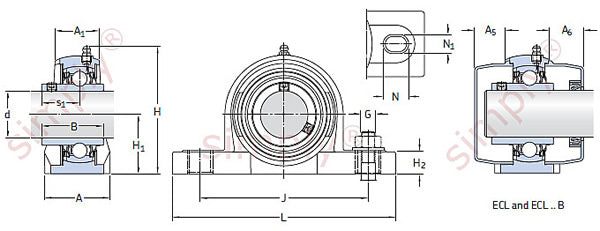

Technical
Technical
| d | 25mm |
|---|---|
| A | 38mm |
| A1 | 24.6mm |
| B | 34.1mm |
| H | 71mm |
| H1 | 36.5mm |
| H2 | 14.5mm |
| J | 105mm |
| L | 140mm |
| N | 14mm |
| N1 | 11mm |
| G | 10mm |
| s1 | 19.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 11.9 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 4300 rpm |
| A5 | 22mm |
| A6 | 22mm |
| Weight | 0.33 kg |
| Housing | SYL505 |
| Insert | YAR205-2RF/HV |
| Compatible end cover closed | ECL205 |
| Compatible end cover open | ECL205B |
