SKU: SY2.3/16PF/AH-SKF

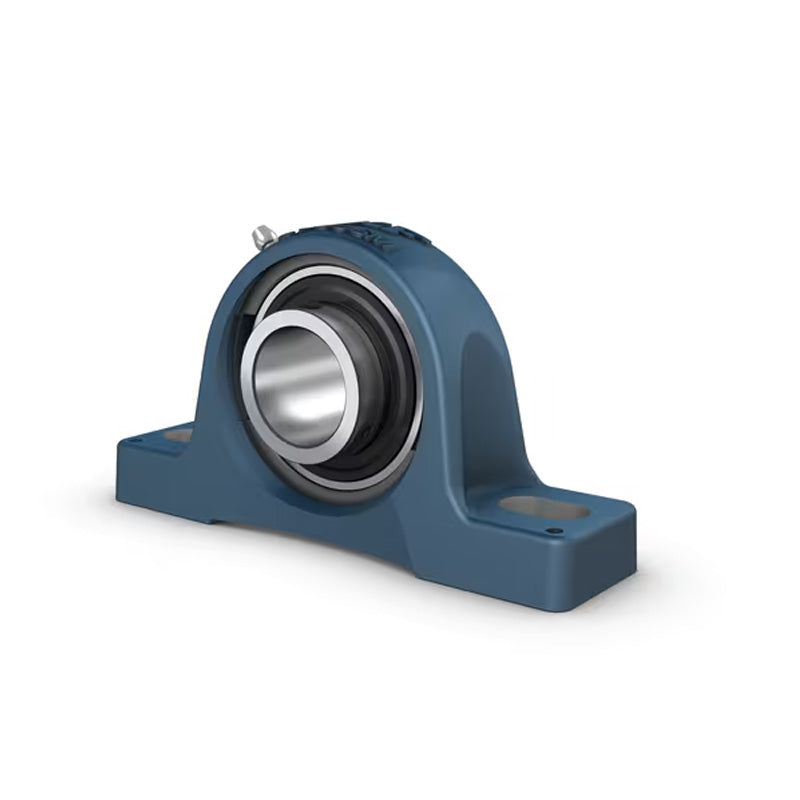

SKF SY2-3/16PF/AH Concentra Pillow Block Housing with 2-3/16 inch Insert
SKF SY2-3/16PF/AH Concentra Pillow Block Housing with 2-3/16 inch Insert
Out of stock
Description
Description
|
SKF ConCentra Ball Bearing Units: This bearing unit consists of a deep groove ball bearing with the inner ring extended on both sides, an SKF ConCentra stepped sleeve and an SY 500 M series plummer block housing for metric shafts, or an SY 500 U/AH series pillow block housing for inch shafts. Filled with a high-quality, long-lasting grease, maintenance-free operation is provided in most cases. The unit can accommodate up to 2 degrees of initial misalignment if they are relubricated during operation otherwise misalignment of up to 5 degrees can be tolerated. The SKF ConCentra ball bearing units have a unique 360 degree locking mechanism. The near perfect 360 degree grip on the shaft virtually eliminates shaft damage and the possibility of fretting corrosion. Benefits: Tolerates misalignment, filled with high-quality grease |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- SY
- Bolt Hole Centres:
- 171.5mm
Technical
Technical

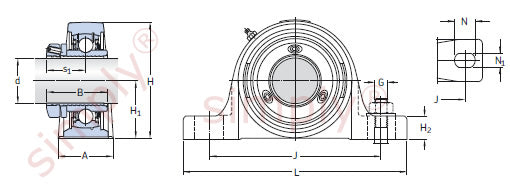

| d | 2-3/16 inch |
|---|---|
| A | 60.4mm |
| B | 57.2mm |
| H | 127mm |
| H1 | 63.5mm |
| H2 | 23.8mm |
| J | 171.5mm |
| L | 219mm |
| N | 27.5mm |
| N1 | 18mm |
| G | 16mm |
| s1 | 36mm |
| Static Load Cr | 29 kN |
| Dynamic Load Cor | 43.6 kN |
| Fatigue load limit Pu | 1.25 kN |
| Limiting speed | 3600 rpm |
| Weight | 3.65 kg |
