SKU: SY1.15/16PF/AH-SKF

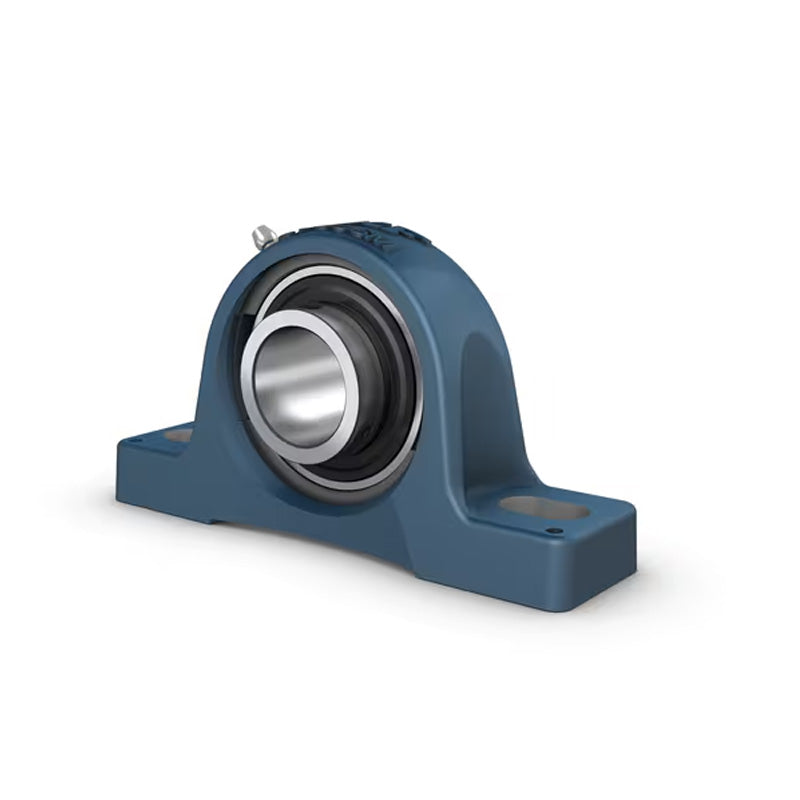

SKF SY1-15/16PF/AH Concentra Pillow Block Housing with 1-15/16 inch Insert
SKF SY1-15/16PF/AH Concentra Pillow Block Housing with 1-15/16 inch Insert
Out of stock
Description
Description
|
SKF ConCentra Ball Bearing Units: This bearing unit consists of a deep groove ball bearing with the inner ring extended on both sides, an SKF ConCentra stepped sleeve and an SY 500 M series plummer block housing for metric shafts, or an SY 500 U/AH series pillow block housing for inch shafts. Filled with a high-quality, long-lasting grease, maintenance-free operation is provided in most cases. The unit can accommodate up to 2 degrees of initial misalignment if they are relubricated during operation otherwise misalignment of up to 5 degrees can be tolerated. The SKF ConCentra ball bearing units have a unique 360 degree locking mechanism. The near perfect 360 degree grip on the shaft virtually eliminates shaft damage and the possibility of fretting corrosion. Benefits: Tolerates misalignment, filled with high-quality grease |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- SY
- Bolt Hole Centres:
- 157mm
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| A | 54mm |
| B | 54mm |
| H | 114mm |
| H1 | 57.2mm |
| H2 | 22mm |
| J | 157mm |
| L | 203mm |
| N | 26mm |
| N1 | 18mm |
| G | 16mm |
| s1 | 35.5mm |
| Static Load Cr | 23.2 kN |
| Dynamic Load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 2.85 kg |
