SKU: SW390-M2400

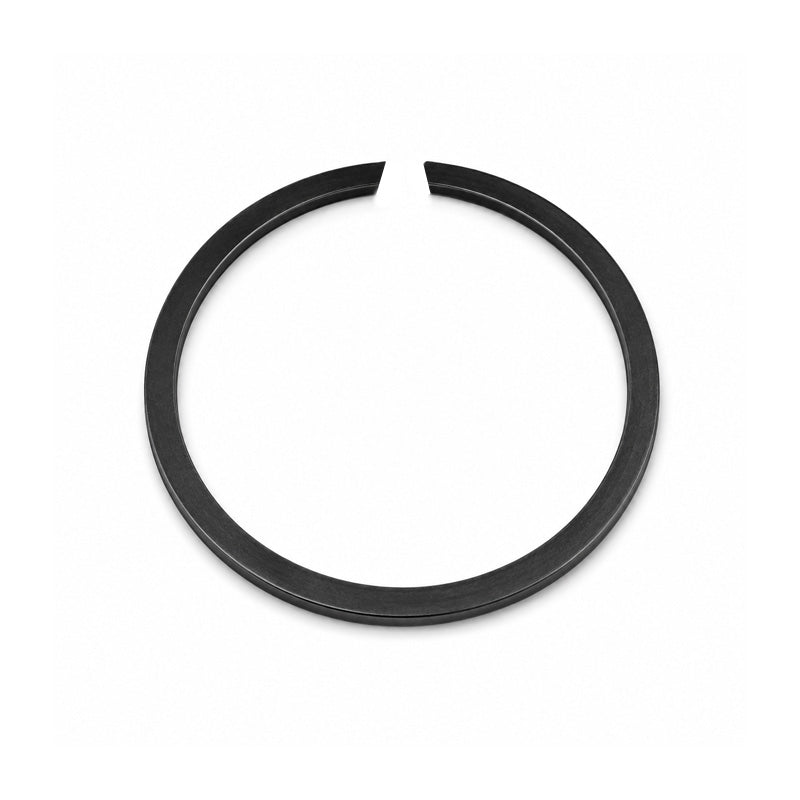

SW390 Snap Ring to Suit 390mm Shaft
SW390 Snap Ring to Suit 390mm Shaft
Equivalent to: DIN5417 DIN 5417 CFS390 CFS-390 2400-390 SW390 SW-390 M2400-390
Out of stock
Description
Description
|
Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 381.3mm
- Shaft Size:
- 390mm
Technical
Technical
| d1 | 390mm |
|---|---|
| s | 4mm (Tolerance -0.1) |
| b | 7.5mm (Tolerance -0.1) |
| d3 max. | 381.3mm |
| d2 | 385mm (Tolerance - 0.36) |
| m min. | 4.2mm |
| FN | 507 kN |
| FR | 112 kN |
| n det x1000 | 0.2 rpm |
