SKU: SUCNFL209FG1-SNR
SNR SUCNFL209FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with45mm Bore Insert - Allow 2-3 Days
SNR SUCNFL209FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with45mm Bore Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
SNR MUCNFL200 Sentinel Two Bolt Oval Thermoplastic Housing Unit: This housing is designed for durability in demanding environments. With a sturdy thermoplastic housing and a stainless steel insert ball bearing secured by socket set screws, this unit ensures reliable performance. Its innovative seal with slinger protects against contaminants, while the LUBSOLID food-grade lubricant makes it ideal for food processing applications. Experience exceptional strength and reliability with this versatile housing unit.
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Temperature Range:
- -10 to 80 deg C
- Style:
- SUCNFL
- Colour:
- White
- Bolt Hole Centres:
- 148.5mm

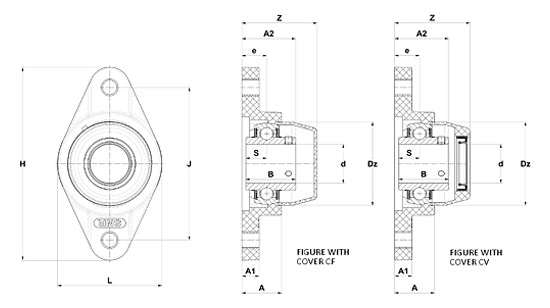

Technical
Technical
| Bore | 45mm |
|---|---|
| A - Housing height | 41mm |
| A1 - Housing foot height / flange height | 21mm |
| A2 - Total height from mounting surface | 54.2mm |
| B - Width of Inner Ring | 49.2mm |
| d - Shaft diameter | 45mm |
| e - Distance mounting surface to bearing centre | 24mm |
| H - Housing length, width or diameter | 188mm |
| J - Mounting holes distance | 148.5mm |
| L - Housing width / diameter | 108mm |
| N - Mounting hole dimension | 17mm |
| S - Distance front side/bearing centre | 19mm |
| C - Dynamic load rating | 32.7 kN |
| C0 - Static load rating | 20.4 kN |
| Operating temperature min. | -10 Deg C |
| Operating temperature max. | 80 Deg C |
| Mass | 1.64kg |
| Recommended tightening torque for set screw | 8.3 Nm |
