SKU: SUCFL.PL.207-22

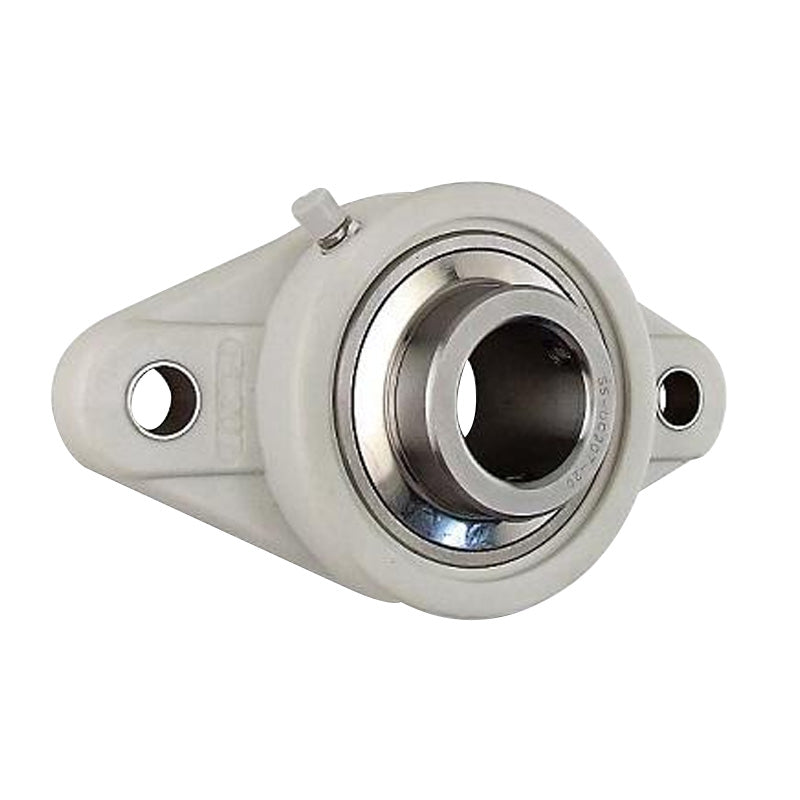

SUCFLPL207-22 Imperial Two Bolt Oval Thermo Plastic Flange Housing with 1-3/8 inch Bore Stainless Insert
SUCFLPL207-22 Imperial Two Bolt Oval Thermo Plastic Flange Housing with 1-3/8 inch Bore Stainless Insert
Equivalent to: PSFT1.3/8CR
Out of stock
Description
Description
|
SUCFLP or SFT Series 2 Bolt Oval Thermo-Plastic Housings: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. This housing unit may be supplied in either green or white. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCFL
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 1-3/8 inch |
|---|---|
| a | 161mm |
| e | 130mm |
| i | 19mm |
| g | 14mm |
| L | 34mm |
| S | 16mm |
| b | 90mm |
| Z | 44.4mm |
| Bi | 42.9mm |
| n | 17.5mm |
| Bolt | 14mm |
| Weight | 1.2 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 4500 rpm |
