SKU: STUD-B13x5-CHIV

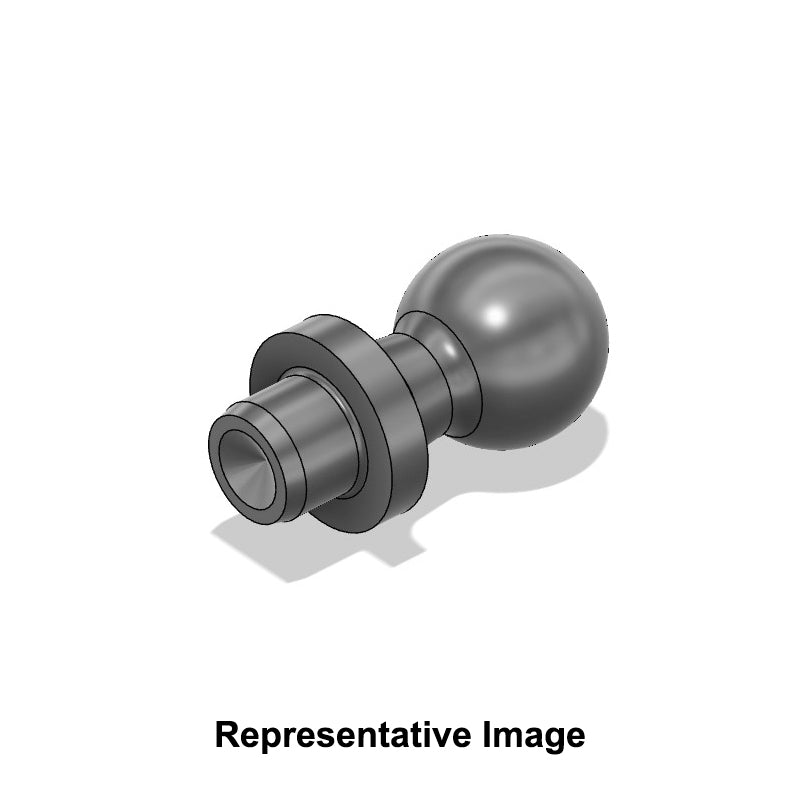

Chiavette B13x5 Steel Ball Stud Unthreaded 13mm Ball Diameter 5mm Length - Allow 2-3 Days
Chiavette B13x5 Steel Ball Stud Unthreaded 13mm Ball Diameter 5mm Length - Allow 2-3 Days
Out of stock
Share this product
Description
Description
Chiavette Steel Ball Studs: Ball studs are supplied as an individual component designed to form a ball joint assembly or for custom end fittings. These ball studs are intended to be used alongside a compatible ball socket that when combined will produce a ball joint. This threaded stud seamlessly integrates into diverse mechanical systems. The unthreaded design of these ball studs allow for the stud to be riveted or used as an anchor point.
- Brand / Quality:
- Chiavette - High Quality
- Outside Diameter:
- 13mm
- Length:
- 5mm
- Type:
- Unthreaded
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 13mm |
| l1 | 5mm (+/-0.2) |
| c | 2.4mm (+/-0.4) |
| d3 | 13mm |
| d4 | 6.5mm (+/-0.2) |
| d5 | 8mm |
| d6 | 6mm (+/-0.4) |
| l3 | 13mm (+/-0.3) |
| l4 | 18.5mm (+/-0.3) |
| Weight | 0.0142 kg |
