SKU: ST7/8EC-RHP

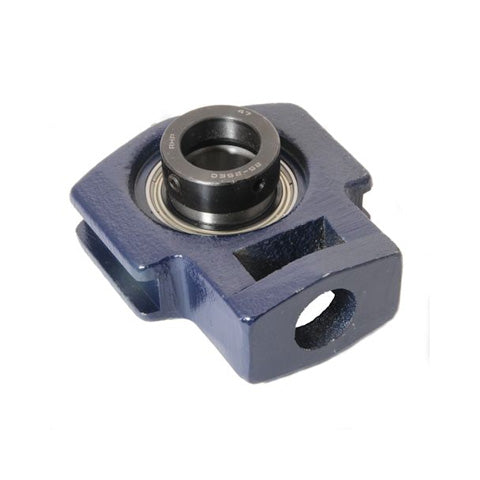

RHP ST7/8EC Cast Iron Take Up Unit and 7/8 inch Bore Insert

RHP ST7/8EC Cast Iron Take Up Unit and 7/8 inch Bore Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 7/8 inch
L 3.858 inch
L1 2.441 inch
L2 0.453 inch
L3 0.63 inch
L4 1.988 inch
L5 1.437 inch
H 3.484 inch
H1 2.303 inch
H2 1.26 inch
H3 2.992 inch
N 0.886 inch
A 1.417 inch
A1 1.083 inch
A2 0.531 inch
B2 1.217 inch
s1 0.298 inch
d2 1.5 inch
Dynamic load 14000 N
Static load 7880 N
Rec max speed 6250 rpm
Weight 1 kg
Insert <a href="advanced_search_result.php?keywords=1225-7/8ECG+insonly">1225-7/8ECG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
