SKU: ST40DEC-RHP

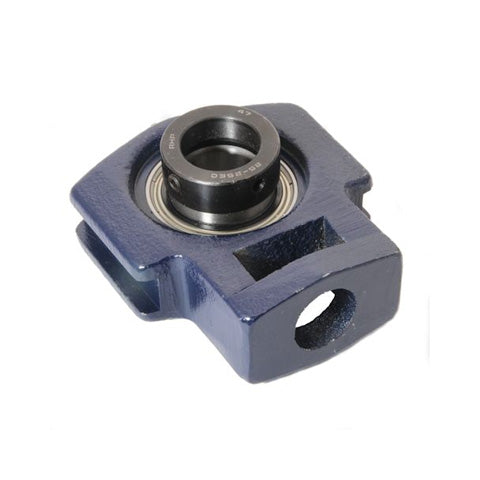

RHP ST40DEC Cast Iron Take Up Unit and 40mm Bore Insert
RHP ST40DEC Cast Iron Take Up Unit and 40mm Bore Insert
Regular price
€98,95
ex VAT
Regular price
Sale price
€98,95
ex VAT
In stock
Price Break
10+
€75,16
20+
€70,93
30+
€70,09
40+
€69,25
50+
€68,40
75+
€67,56
100+
€63,33
200+
€62,49
250+
€61,65
500+
€60,80
1000+
€59,11
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Style:
- ST
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 143.5mm |
| L1 | 89.2mm |
| L2 | 15.5mm |
| L3 | 20.5mm |
| L4 | 81.5mm |
| L5 | 50.5mm |
| H | 118mm |
| H1 | 82.5mm |
| H2 | 49.5mm |
| H3 | 101mm |
| N | 29mm |
| A | 49.5mm |
| A1 | 37mm |
| A2 | 17.5mm |
| B3 | 56.34mm |
| s2 | 21.46mm |
| d2 | 60.3mm |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-40DECG+insonly">1040-40DECG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
