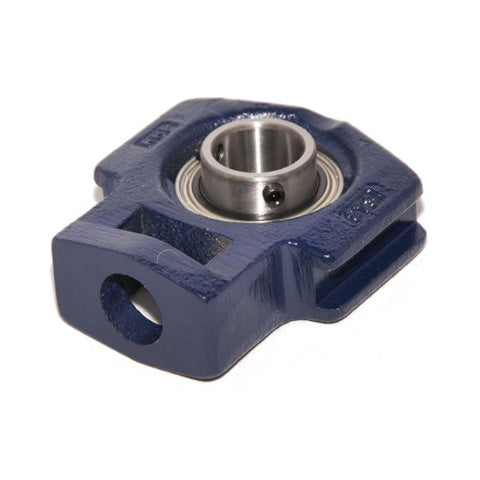

RHP ST3-3/16 Cast Iron Take Up Unit and 3-3/16 inch Bore Insert
RHP ST3-3/16 Cast Iron Take Up Unit and 3-3/16 inch Bore Insert
Out of stock
Share this product
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 80.96mm = 3.187 (3-3/16) inch
- Style:
- ST
Technical
Technical
| Bore | 3-3/16 inch |
|---|---|
| L | 9.114 inch |
| L1 | 5.492 inch |
| L2 | 0.807 inch |
| L3 | 1.26 inch |
| L4 | 4.921 inch |
| L5 | 2.913 inch |
| H | 7.244 inch |
| H1 | 4.449 inch |
| H2 | 2.756 inch |
| H3 | 6.5 inch |
| N | 1.654 inch |
| A | 2.756 inch |
| A1 | 2.126 inch |
| A2 | 1.063 inch |
| B | 3.25 inch |
| s | 1.314 inch |
| d1 | 3.878 inch |
| Dynamic load | 71500 N |
| Static load | 54500 N |
| Rec max speed | 2150 rpm |
| Weight | 9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1080-3-3/16G+insonly">1080-3-3/16G Click Here</a> |
| Casting group | 13 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
