SKU: ST1.11/16DEC-RHP

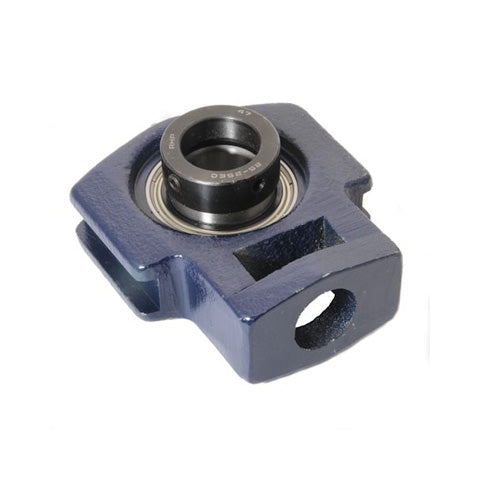

RHP ST1-11/16DEC Cast Iron Take Up Unit and 1-11/16 inch Bore Insert
RHP ST1-11/16DEC Cast Iron Take Up Unit and 1-11/16 inch Bore Insert
Out of stock
Share this product
Description
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- ST
Technical
Technical
| Bore | 1-11/16 inch |
|---|---|
| L | 5.787 inch |
| L1 | 3.512 inch |
| L2 | 0.61 inch |
| L3 | 0.807 inch |
| L4 | 3.209 inch |
| L5 | 1.988 inch |
| H | 4.646 inch |
| H1 | 3.248 inch |
| H2 | 1.949 inch |
| H3 | 3.976 inch |
| N | 1.142 inch |
| A | 1.949 inch |
| A1 | 1.457 inch |
| A2 | 0.689 inch |
| B3 | 2.218 inch |
| s2 | 0.845 inch |
| d2 | 2.5 inch |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-11/16DECG+insonly">1045-1-11/16DECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
