SKU: SSUCFL.215-48

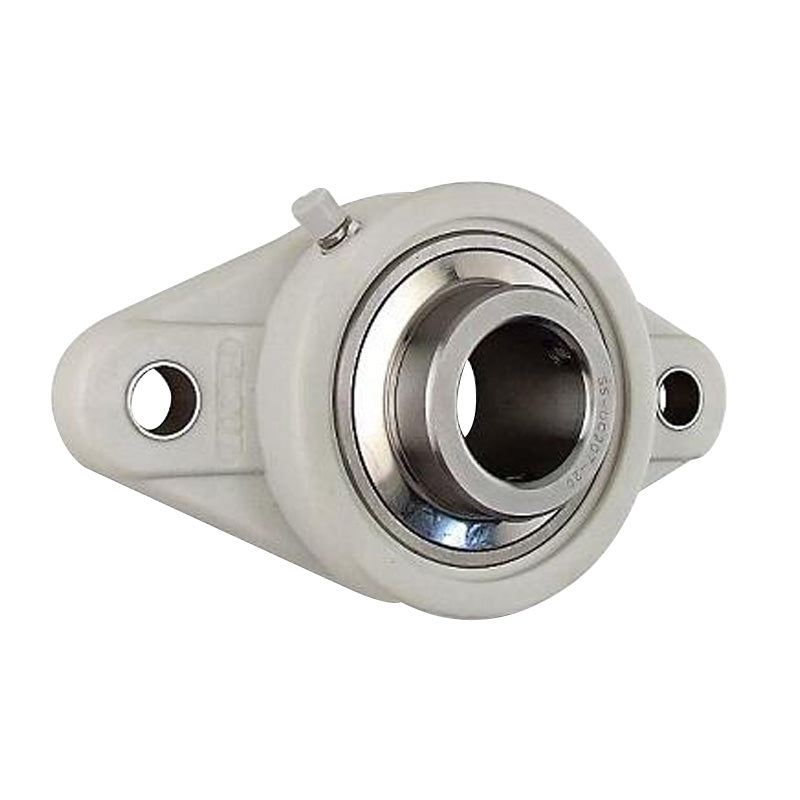

SSUCFL215-48 Imperial Two Bolt Oval Stainless Steel Flange Housing with 3 inch Bore Stainless Insert
SSUCFL215-48 Imperial Two Bolt Oval Stainless Steel Flange Housing with 3 inch Bore Stainless Insert
Out of stock
Description
Description
|
SSUCFL or SFT Series 2 Bolt Oval Stainless Steel Housings: Bearing unit supplied with a fully sealed stainless steel bearing insert fitted in the oval stainless housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- SSUCFL
- Bolt Hole Centres:
- 225mm
Technical
Technical
| d | 3 inch |
|---|---|
| a | 275mm |
| e | 225mm |
| i | 35mm |
| g | 20mm |
| L | 57mm |
| S | 23mm |
| b | 165mm |
| Z | 79.5mm |
| Bi | 77.8mm |
| n | 33.3mm |
| Bolt | 20mm |
| Weight | 6.4 kg |
| Dynamic load | 5190 kgf |
| Static load | 4190 kgf |
