SKU: SSUCFL.207-22

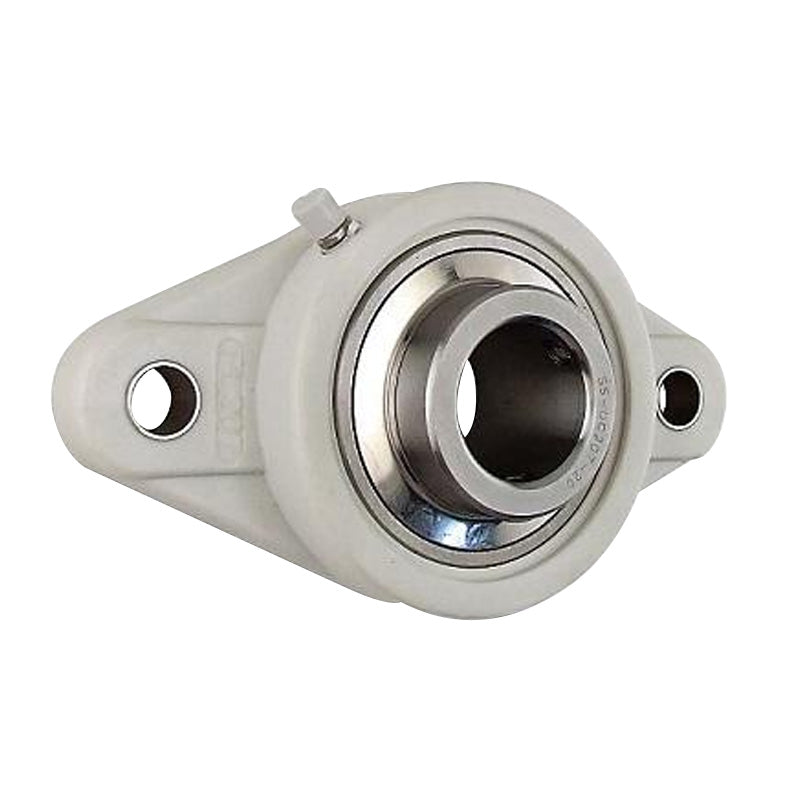

SSUCFL207-22 Imperial Two Bolt Oval Stainless Steel Flange Housing with 1-3/8 inch Bore Stainless Insert
SSUCFL207-22 Imperial Two Bolt Oval Stainless Steel Flange Housing with 1-3/8 inch Bore Stainless Insert
Equivalent to: SFT1-3/8
Out of stock
Description
Description
|
SSUCFL or SFT Series 2 Bolt Oval Stainless Steel Housings: Bearing unit supplied with a fully sealed stainless steel bearing insert fitted in the oval stainless housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- SSUCFL
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 1-3/8 inch |
|---|---|
| a | 161mm |
| e | 130mm |
| i | 19mm |
| g | 14mm |
| L | 34mm |
| S | 16mm |
| b | 90mm |
| Z | 44.4mm |
| Bi | 42.9mm |
| n | 17.5mm |
| Bolt | 14mm |
| Weight | 1.2 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
