SKU: SSUC.215

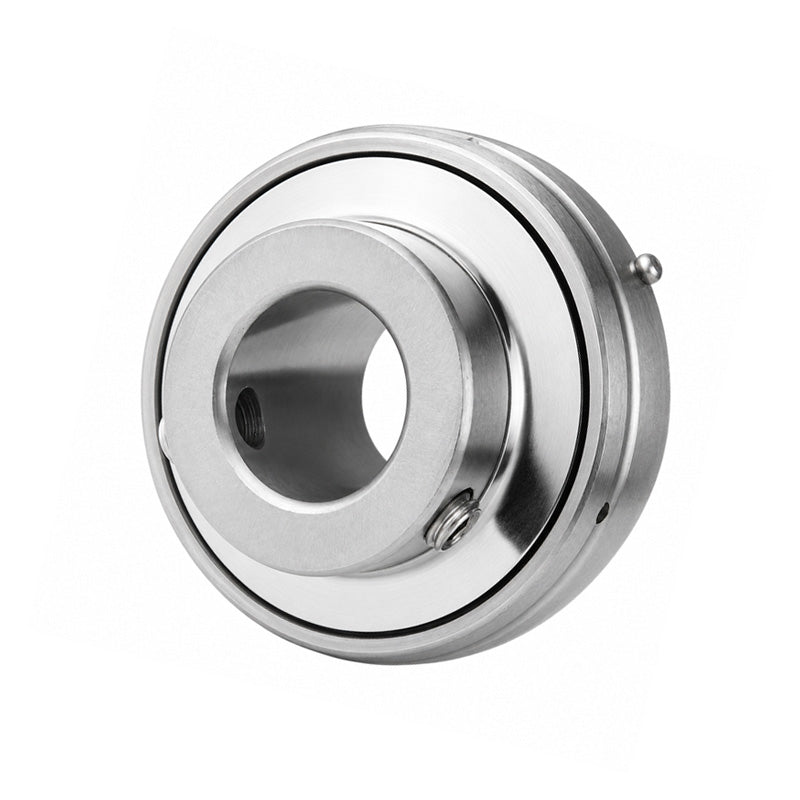

SSUC215 Metric Stainless Steel Bearing Insert with 75mm Bore 130mm Outside Dia
SSUC215 Metric Stainless Steel Bearing Insert with 75mm Bore 130mm Outside Dia
Out of stock
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Style:
- SSUC
Technical
Technical
| d | 75mm |
|---|---|
| D | 130mm |
| Bi | 77.8mm |
| Be | 30mm |
| n | 33.3mm |
| m | 44.5mm |
| G | 12mm |
| Grub screw | 7/16"-20 UNF |
| Weight | 2.12 kg |
| Dynamic load | 5190 kgf |
| Static load | 4190 kgf |
