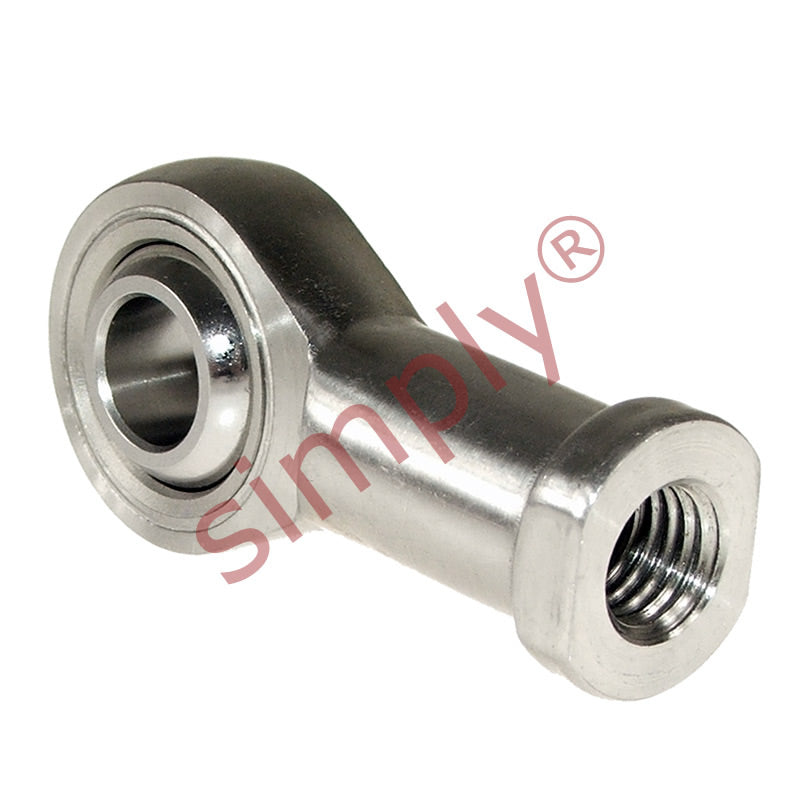

Budget SSPHS28 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 28mm Bore M27x2 Thread

Name: Budget SSPHS28 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 28mm Bore M27x2 Thread
Brand: Gen
SKU: SS.PHS28.EU
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M27x2
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 28mm
Material:: PTFE Lined

Technical

d	28mm
B	35mm
r1	0.6mm
C1	25mm
d1 max	32.29mm
d2	66mm
d3	M27x2
h1	103mm
L3	53mm
L4	136mm
L5	12mm
d4	37mm
d5	46mm
S	41mm
Ball diameter	1-7/8 inch
Dynamic load Cr	59.5mm
Static load Cor	88.7mm
Max angle α	15
Weight	0.95 kg
