SKU: SONL238-538-SKF

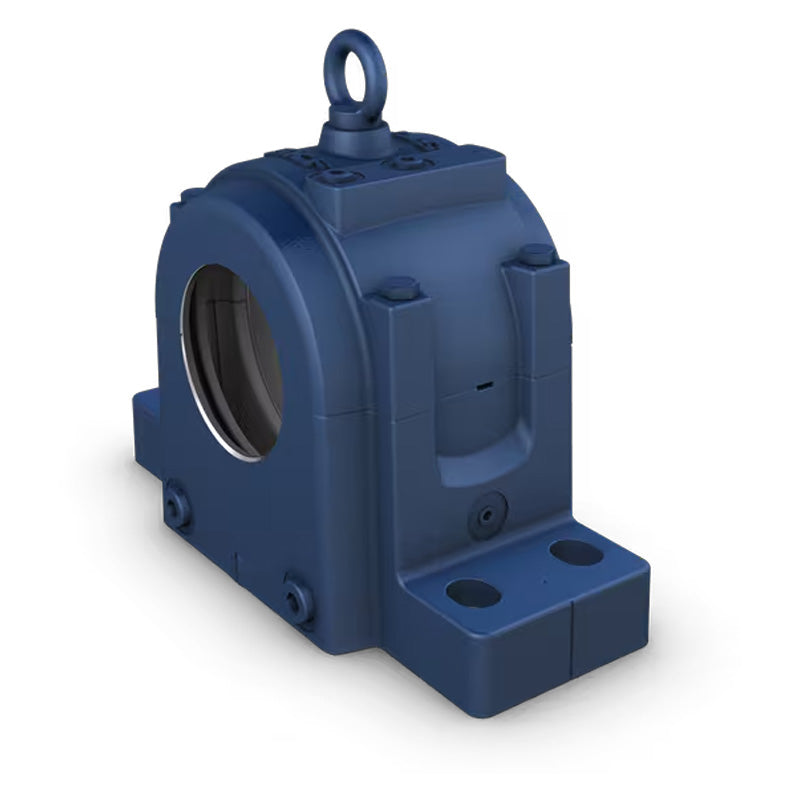

SKF SONL238-538 Cast Iron Split Pillow Block Housing
SKF SONL238-538 Cast Iron Split Pillow Block Housing
Out of stock
Description
Description
|
SKF SONL Split Plummer Block Housings: SONL plummer block housings are split housings consisting of a cap and base. They are made of grey cast iron and are painted block using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). The housings have a deep reservoir that holds a large volume of oil so that heat can be dissipated effectively. The housings have four holes cast into the base for attachment bolts. Benefits: Strong, stiff and simple design, simple mounting, deep sump for lower operating temperatures. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 590mm
Technical
Technical
| da | 170mm |
|---|---|
| Ca | 120mm |
| Da | 340mm |
| A | 330mm |
| A1 | 250mm |
| A2 | 225mm |
| AA | 350mm |
| AB | 370mm |
| d1 | 220mm |
| B1 | 139mm |
| H | 480mm |
| H0 | 570mm |
| H1 | 260mm |
| H2 | 85mm |
| J | 590mm |
| J1 | 150mm |
| L | 720mm |
| N | 50mm |
| N1 | 42mm |
| S | 185mm |
| PG | G 3/4 |
| P1 | 85mm |
| P2 | 98mm |
| RG | G 1-1/2 |
| R1 | 298mm |
| R2 | 41mm |
| O1 | 166mm |
| O2 | 225mm |
| J6 | 640mm |
| N4 max | 20mm |
| ba | 82mm |
| bb | 267mm |
| s2 | 52.5mm |
| Weight | 249 kg |
