SKU: SONL236-536-SKF

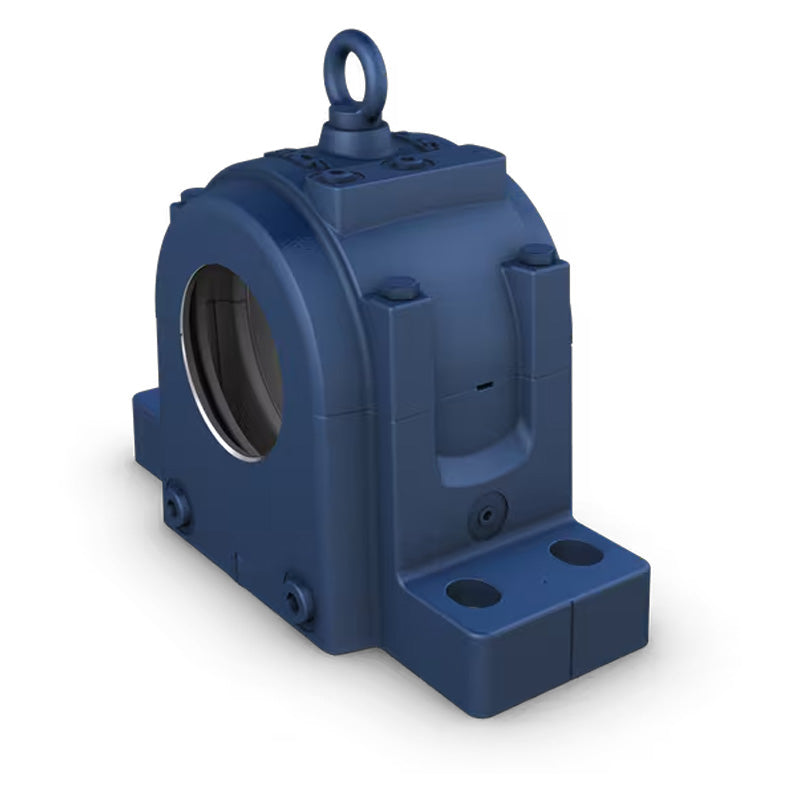

SKF SONL236-536 Cast Iron Split Pillow Block Housing
SKF SONL236-536 Cast Iron Split Pillow Block Housing
Out of stock
Description
Description
|
SKF SONL Split Plummer Block Housings: SONL plummer block housings are split housings consisting of a cap and base. They are made of grey cast iron and are painted block using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). The housings have a deep reservoir that holds a large volume of oil so that heat can be dissipated effectively. The housings have four holes cast into the base for attachment bolts. Benefits: Strong, stiff and simple design, simple mounting, deep sump for lower operating temperatures. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 545mm
Technical
Technical
| da | 160mm |
|---|---|
| Ca | 114mm |
| Da | 320mm |
| A | 320mm |
| A1 | 240mm |
| A2 | 220mm |
| AA | 340mm |
| AB | 360mm |
| d1 | 205mm |
| B1 | 137mm |
| H | 455mm |
| H0 | 545mm |
| H1 | 245mm |
| H2 | 75mm |
| J | 545mm |
| J1 | 150mm |
| L | 650mm |
| N | 42mm |
| N1 | 35mm |
| S | 180mm |
| PG | G 3/4 |
| P1 | 85mm |
| P2 | 93mm |
| RG | G 1-1/2 |
| R1 | 278mm |
| R2 | 41mm |
| O1 | 136mm |
| O2 | 220mm |
| J6 | 570mm |
| N4 max | 20mm |
| ba | 78mm |
| bb | 258mm |
| s2 | 53.5mm |
| Weight | 213 kg |
