SKU: SM-UKT207SD1/HS2307-NTN

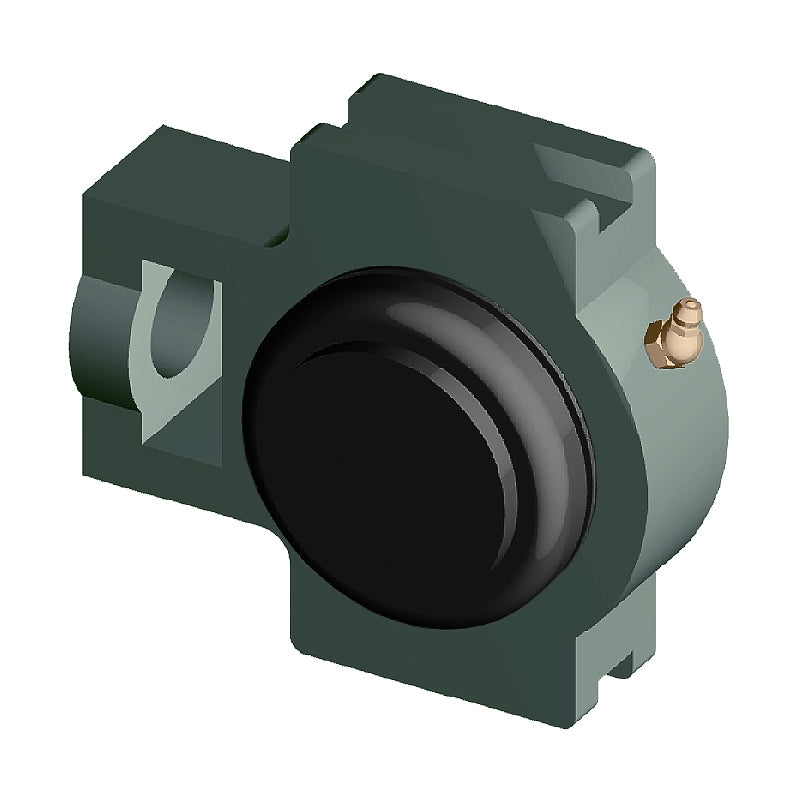

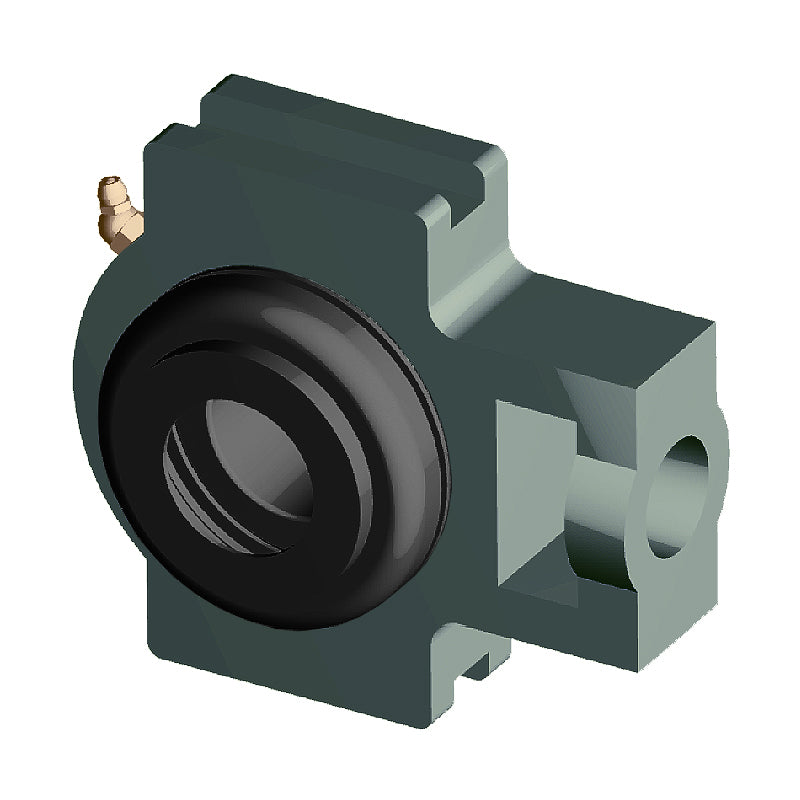

NTN SM-UKT207SD1/HS2307 Imperial Cast Iron Take Up Unit with Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 1-1/8 inch Shaft - Allow 2-3 Days
NTN SM-UKT207SD1/HS2307 Imperial Cast Iron Take Up Unit with Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 1-1/8 inch Shaft - Allow 2-3 Days
Out of stock
Description
Description

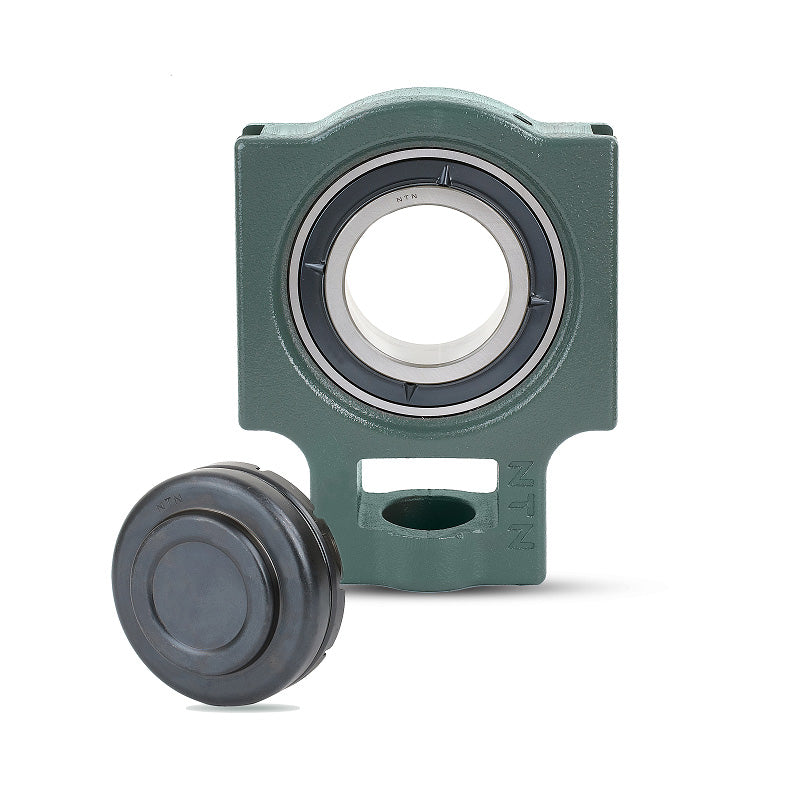

UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- UKT
Technical
Technical
| Shaft diameter | 1-1/8 inch |
|---|---|
| N<sub>1</sub> | 5/8 inch |
| L<sub>2</sub> | 19/32 inch |
| H<sub>2</sub> | 2-17/32 inch |
| N<sub>2</sub> | 1-15/32 inch |
| N | 7/8 inch |
| L<sub>3</sub> | 2-17/32 inch |
| A<sub>1</sub> | 0.472 inch |
| H<sub>1</sub> | 3-1/2 inch |
| H | 4-1/32 inch |
| L | 5-3/32 inch |
| A<sub>2</sub> | 1-3/16 inch |
| A | 1-15/32 inch |
| r | 2 inch |
| L<sub>1</sub> | 3-1/16 inch |
| B<sub>1</sub> | 1.693 inch |
| t<sub>1</sub> | 25/64 inch |
| A<sub>4</sub> | 2-27/32 inch |
| Mass | 4 lbs |
