SKU: SM-UCFL210-200D1-NTN

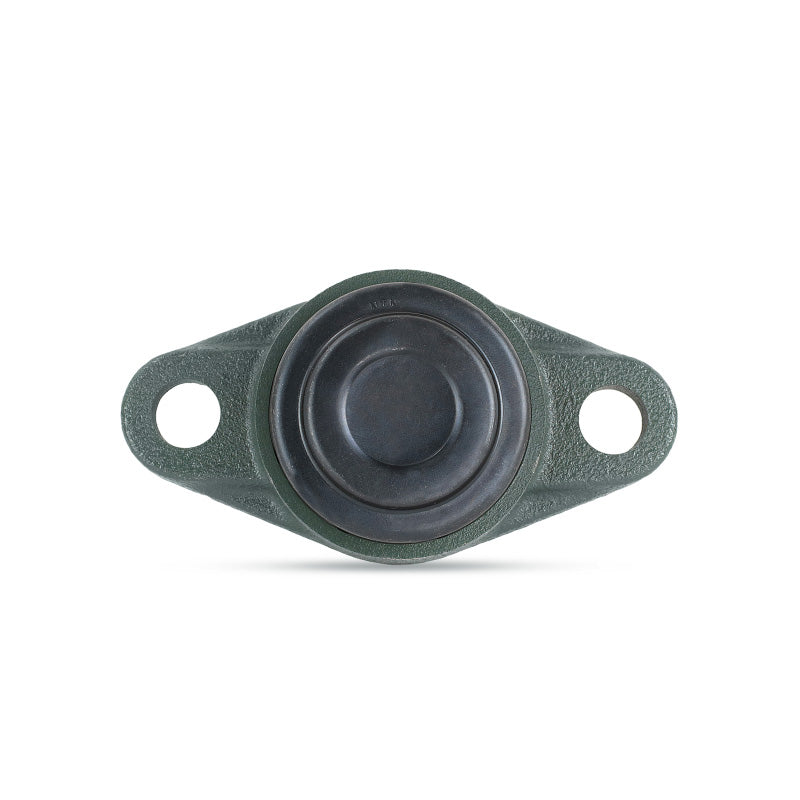

NTN SM-UCFL210-200D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 2 inch Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
NTN SM-UCFL210-200D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 2 inch Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50.8mm = 2 Inch
- Style:
- UCFL
- Bolt Hole Centres:
- 6-3/16 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2 inch |
| H | 7-3/4 inch |
| J | 6-3/16 inch |
| A<sub>2</sub> | 55/64 inch |
| A<sub>1</sub> | 5/8 inch |
| A | 1-9/16 inch |
| N | 3/4 inch |
| L | 4-17/32 inch |
| B | 2.0315 inch |
| S | 0.748 inch |
| t<sub>1</sub> | 5/16 inch |
| A<sub>4</sub> | 2-19/32 inch |
| Fixing bolt | 5/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 39 kN |
| Static load C<sub>0r</sub> | 23.2 kN |
| Fatigue load limit C<sub>u</sub> | 1.82 kN |
| --- | Unit information |
| Mass | 4.6 lbs |
