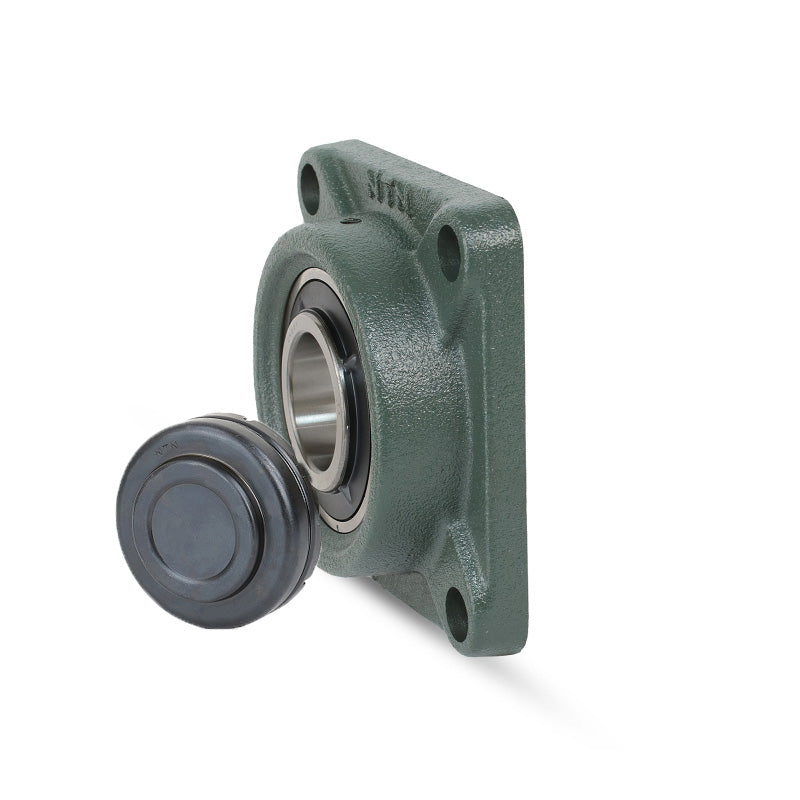

• NTN SM-UCFC209D1 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
  • NTN
1 2

SKU: SM-UCFC209D1-NTN

NTN SM-UCFC209D1 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days

NTN SM-UCFC209D1 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
€60,95 ex VAT
€60,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €45,95
4+ €43,37
9+ €42,85
19+ €42,34
49+ €41,82
99+ €41,30
499+ €38,72
999+ €38,21
1999+ €37,69
2999+ €37,17
4999+ €36,14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Style:
UCFC
Pitch Circle Diameter:
93.3mm
Technical

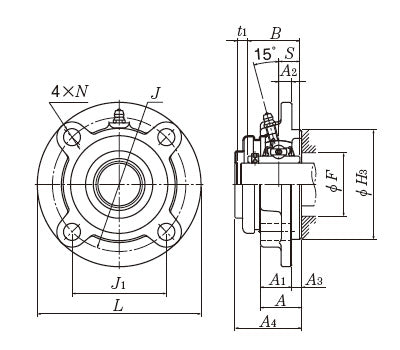

--- Dimensions
Shaft diameter 45mm
L 160mm
J 132mm
(J<sub>1</sub>) 93.3mm
A<sub>2</sub> 10mm
N 16mm
A<sub>3</sub> 12mm
A<sub>1</sub> 26mm
A 38mm
H<sub>3</sub> 105mm
B 49.2mm
S 19mm
t<sub>1</sub> 8mm
A<sub>4</sub> 63mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 36 kN
Static load C<sub>0r</sub> 20.4 kN
Fatigue load limit C<sub>u</sub> 1.6 kN
--- Unit information
Mass 2.7 kg
