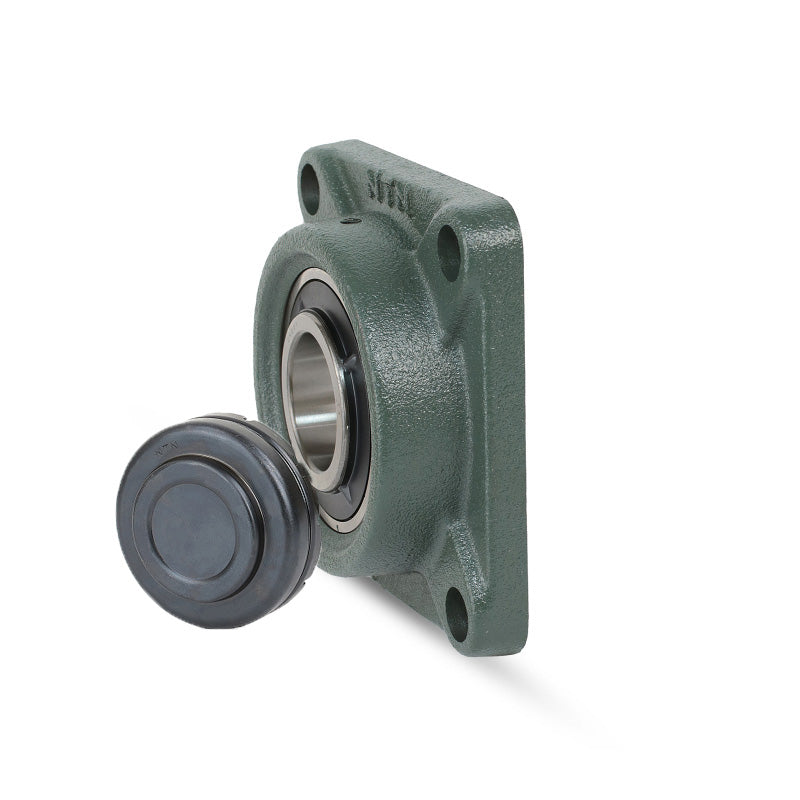

• NTN SM-UCFC207D1 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
  • NTN
1 2

SKU: SM-UCFC207D1-NTN

NTN SM-UCFC207D1 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days

NTN SM-UCFC207D1 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
€46,95 ex VAT
€46,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €35,34
4+ €33,36
9+ €32,96
19+ €32,56
49+ €32,17
99+ €31,77
499+ €29,78
999+ €29,39
1999+ €28,99
2999+ €28,59
4999+ €27,80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Style:
UCFC
Pitch Circle Diameter:
77.8mm
Technical

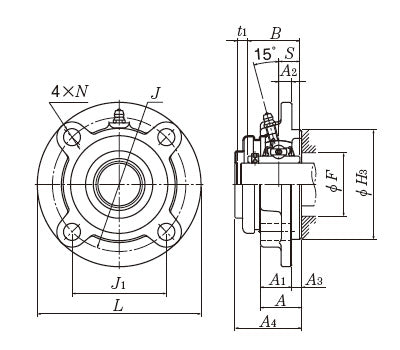

--- Dimensions
Shaft diameter 35mm
L 135mm
J 110mm
(J<sub>1</sub>) 77.8mm
A<sub>2</sub> 11mm
N 14mm
A<sub>3</sub> 8mm
A<sub>1</sub> 26mm
A 34mm
H<sub>3</sub> 90mm
B 42.9mm
S 17.5mm
t<sub>1</sub> 8mm
A<sub>4</sub> 55mm
Fixing bolt M12
--- Load rating
Dynamic load C<sub>r</sub> 28.4 kN
Static load C<sub>0r</sub> 15.3 kN
Fatigue load limit C<sub>u</sub> 1.09 kN
--- Unit information
Mass 1.7 kg
