SKU: SM-UCFC201D1-NTN

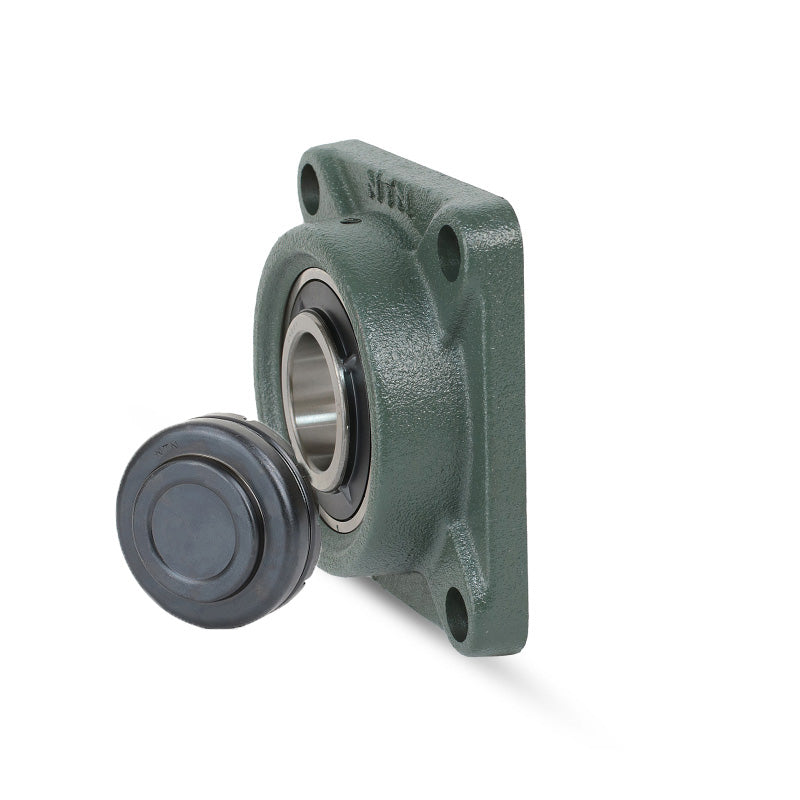

NTN SM-UCFC201D1 Metric Four Bolt Cast Iron Round Flanged Housing with 12mm Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
NTN SM-UCFC201D1 Metric Four Bolt Cast Iron Round Flanged Housing with 12mm Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 55.2mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 12mm |
| L | 100mm |
| J | 78mm |
| (J<sub>1</sub>) | 55.2mm |
| A<sub>2</sub> | 10mm |
| N | 12mm |
| A<sub>3</sub> | 5mm |
| A<sub>1</sub> | 20.5mm |
| A | 25.5mm |
| H<sub>3</sub> | 62mm |
| B | 31mm |
| S | 12.7mm |
| t<sub>1</sub> | 5mm |
| A<sub>4</sub> | 40.5mm |
| Fixing bolt | M10 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 14.2 kN |
| Static load C<sub>0r</sub> | 6.65 kN |
| Fatigue load limit C<sub>u</sub> | 0.505 kN |
| --- | Unit information |
| Mass | 0.8 kg |
