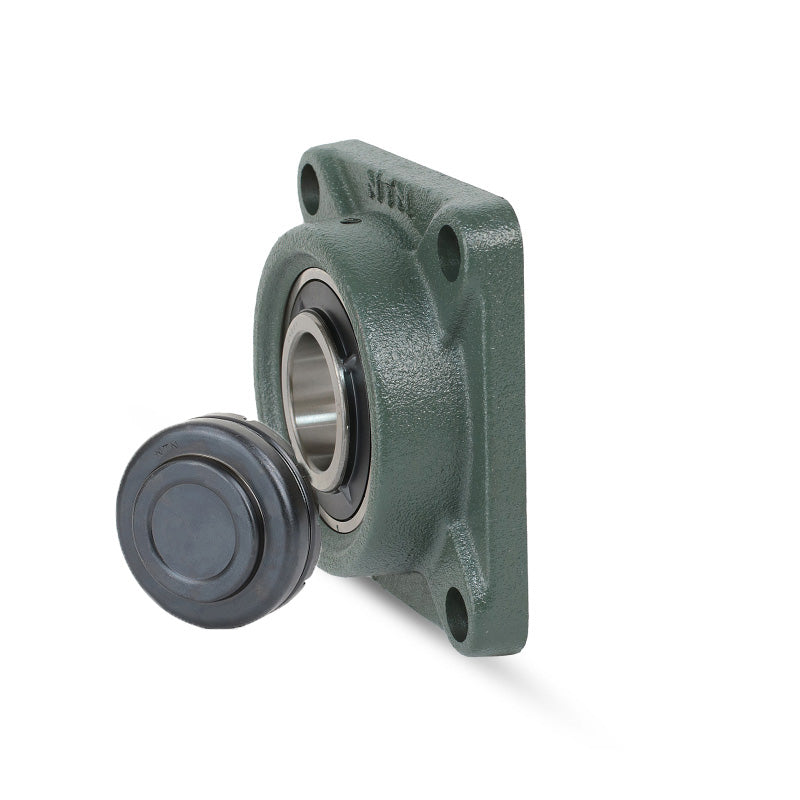

• NTN SM-UCF212D1 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: SM-UCF212D1-NTN

NTN SM-UCF212D1 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days

NTN SM-UCF212D1 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert with Steel Plate Cover - Closed Version - Allow 2-3 Days
€94,95 ex VAT
€94,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €71,52
4+ €67,50
9+ €66,70
19+ €65,90
49+ €65,09
99+ €64,29
499+ €60,27
999+ €59,47
1999+ €58,66
2999+ €57,86
4999+ €56,25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF200_DESC
Brand / Quality:
NTN - High Quality
Inside Diameter:
60mm
Style:
UCF
Bolt Hole Centres:
143mm
Technical

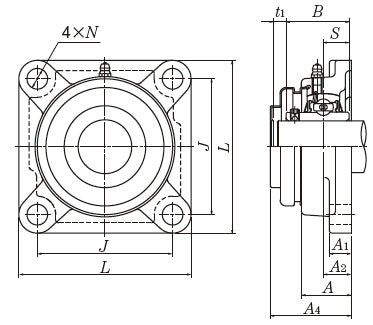

--- Dimensions
Shaft diameter 60mm
L 175mm
J 143mm
A<sub>2</sub> 29mm
A<sub>1</sub> 18mm
A 48mm
N 19mm
B 65.1mm
S 25.4mm
t<sub>1</sub> 8mm
A<sub>4</sub> 80mm
Fixing bolt M16
--- Load rating
Dynamic load C<sub>r</sub> 58 kN
Static load C<sub>0r</sub> 36 kN
Fatigue load limit C<sub>u</sub> 2.83 kN
--- Unit information
Mass 4.1 kg
