SKU: SLC3/4A-RHP

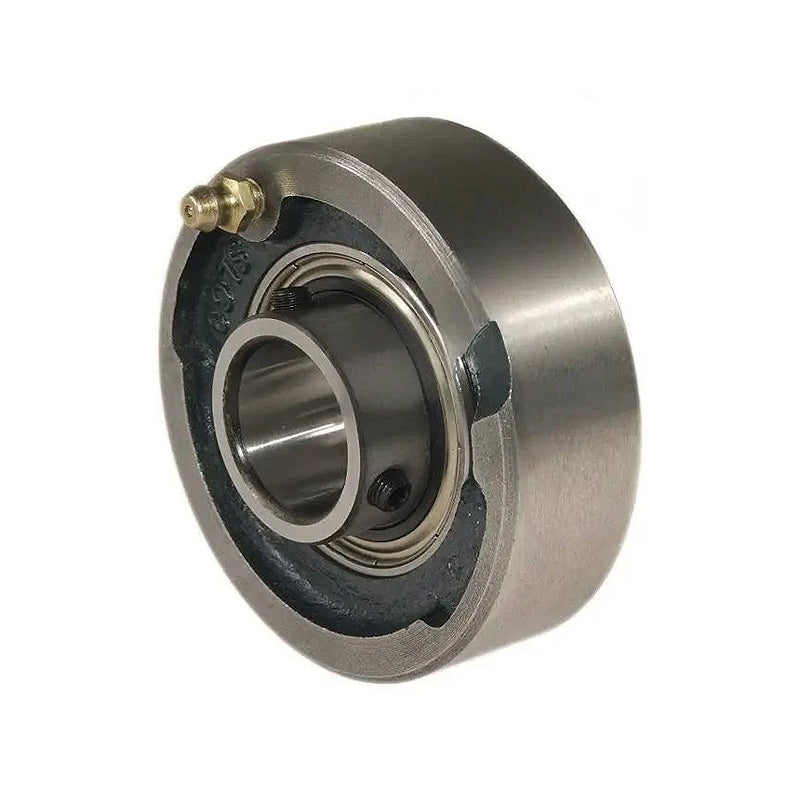

RHP SLC3/4A Cast Iron Cartridge Unit with 3/4 inch Bore Insert 74.64mm Outside Diameter
RHP SLC3/4A Cast Iron Cartridge Unit with 3/4 inch Bore Insert 74.64mm Outside Diameter
Out of stock
Share this product
Description
Description
|
RHP SLC A Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 74.64mm
- Style:
- SLC
Technical
Technical
| Bore | 3/4 inch |
|---|---|
| L | 2.9385 inch |
| A | 0.875 inch |
| A1 | 1.157 inch |
| A2 | 1.36 inch |
| A3 | 1.483 inch |
| B | 1.219 inch |
| B1 | 1.015 inch |
| B2 | 1.217 inch |
| B3 | 1.717 inch |
| s | 0.502 inch |
| s1 | 0.298 inch |
| s2 | 0.674 inch |
| d1 | 1.122 inch |
| d2 | 1.311 inch |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1220-3/4AG+insonly">1220-3/4AG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
