SKU: SL260_IMP_NAK
NAK SL260 Hardened Stainless Sleeve for Shafts 7.244-7.254 inch - Allow 7-10 Days
NAK SL260 Hardened Stainless Sleeve for Shafts 7.244-7.254 inch - Allow 7-10 Days
Regular price
€92,95
ex VAT
Regular price
Sale price
€92,95
ex VAT
Equivalent to: CR99725
In stock
Price Break
10+
€70,63
19+
€66,66
29+
€65,87
39+
€65,07
49+
€64,28
74+
€63,48
99+
€59,52
199+
€58,72
249+
€57,93
499+
€57,14
999+
€55,55
Quantity
Couldn't load pickup availability
Description
Description

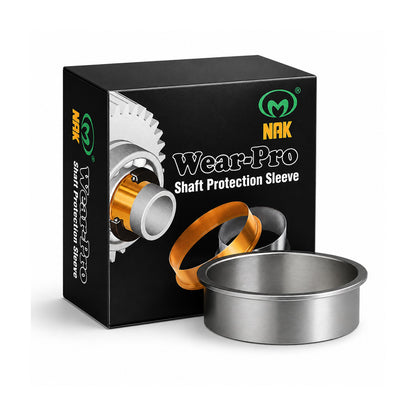

NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 1.5 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 7.25 inch
- Flange Diameter:
- 7.76 inch
Technical
Technical
| Shaft Diameter Range (A) | 7.244-7.254 inch |
|---|---|
| Nominal Shaft Diameter (A) | 7.25 inch |
| Flange Diameter (D) | 7.76 inch |
| Width on Shaft (X) | 1.252 inch |
| Overall Width (Y) | 1.5 inch |
| Installation Depth (Z) | 2.173 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
