SKU: SL1.15/16-RHP

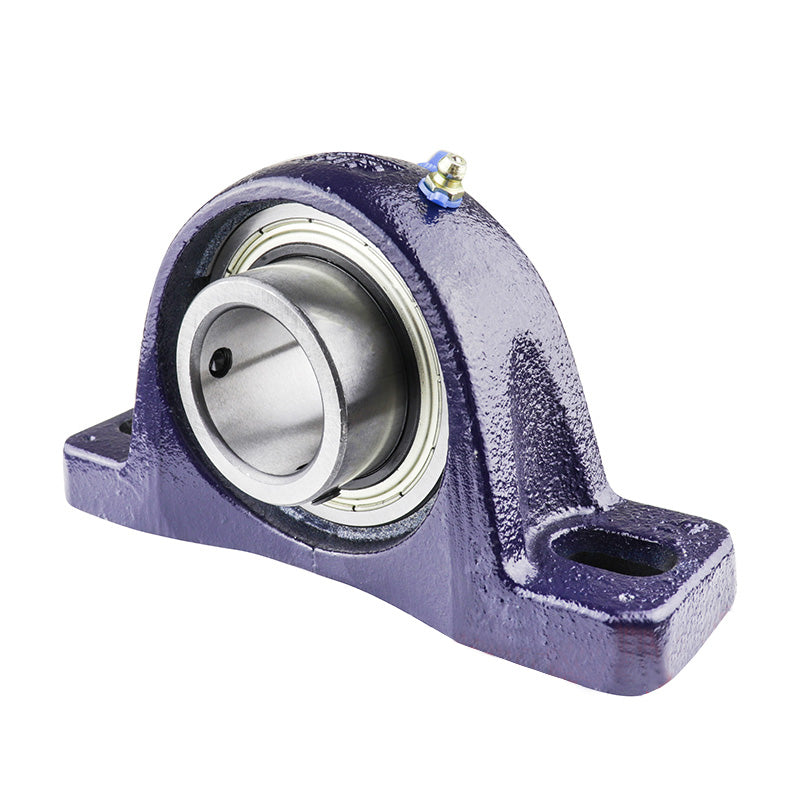

RHP SL1-15/16 Two Bolt Cast Iron Pillow Block and 1-15/16 Bore Grub Screw Full Width Insert
RHP SL1-15/16 Two Bolt Cast Iron Pillow Block and 1-15/16 Bore Grub Screw Full Width Insert
Regular price
€98,95
ex VAT
Regular price
Sale price
€98,95
ex VAT
In stock
Price Break
10+
€74,66
20+
€70,47
30+
€69,63
40+
€68,79
50+
€67,95
75+
€67,11
100+
€62,92
200+
€62,08
250+
€61,24
500+
€60,40
1000+
€58,72
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- SL
- Bolt Hole Centres:
- 5.945-6.969 inch
Technical
Technical
| Bore | 1-15/16 inch |
|---|---|
| L | 8.425 inch |
| H | 2.187 inch |
| H1 | 0.76 inch |
| H2 | 4.488 inch |
| J max | 6.969 inch |
| J min | 5.945 inch |
| G | 0.5 inch |
| A | 2.165 inch |
| A1 | 1.417 inch |
| B | 2.031 inch |
| s | 0.752 inch |
| s1 | 0.435 inch |
| d1 | 2.449 inch |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1050-1-15/16G+insonly">1050-1-15/16G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
