SKU: SK006

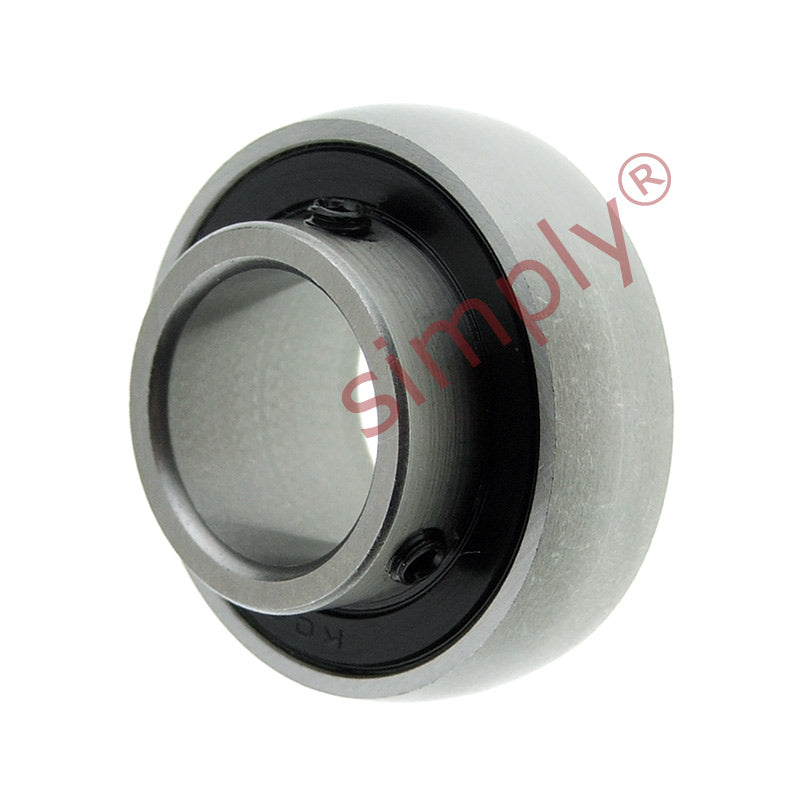

SK006 Stainless Steel Metric Grub Screw Type Bearing Insert with 30mm Bore 55mm Outside Dia
SK006 Stainless Steel Metric Grub Screw Type Bearing Insert with 30mm Bore 55mm Outside Dia
Out of stock
Share this product
Description
Description
|
Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Style:
- SK

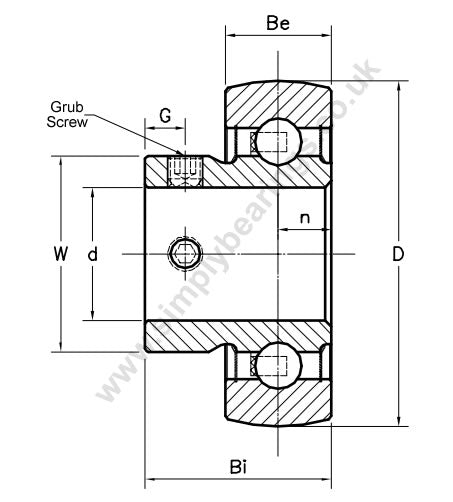

Technical
Technical
| Inside Diameter d | 30mm |
|---|---|
| Outside Diameter D | 55mm |
| Bi | 24.5mm |
| Be | 13mm |
| r | 1.5mm |
| n | 6.5mm |
| G | 5mm |
| W | 38mm |
| Grub screw | M5x0.5 |
| Dynamic load | 1350N ~ 137.662 kgf |
| Static load | 845N ~ 86.166 kgf |
| Weight | 0.16 kg |
