SKU: SILKAC10M-CDX

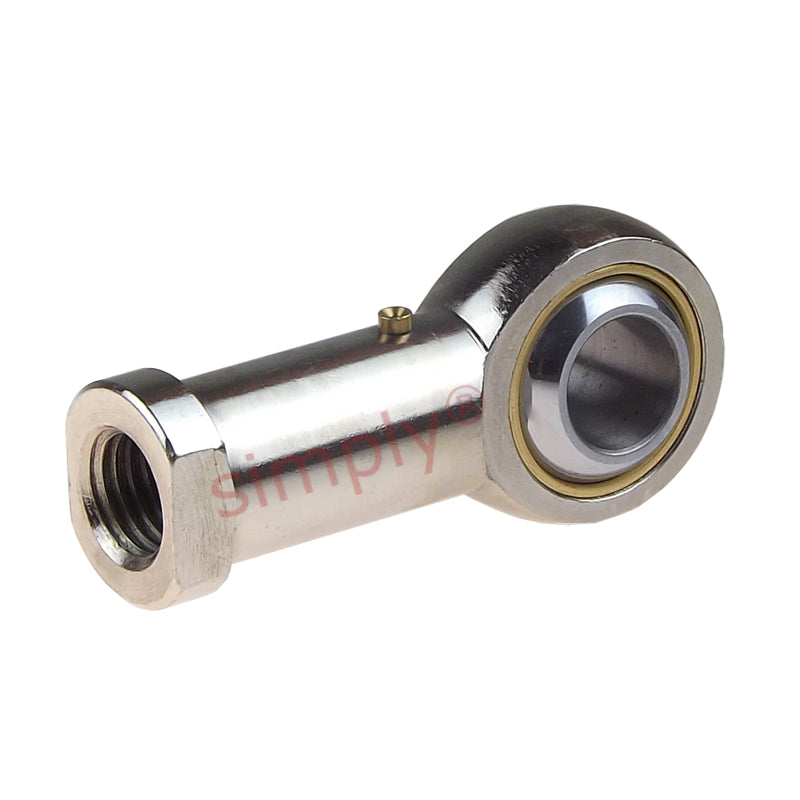

Codex SILKAC10M Left Hand Steel / Bronze Lined Plain Female Rod End M10 Thread
- Regular price
- €12,95 ex VAT
- Sale price
- €12,95
- Regular price
-
In stock
Quantity Price Breaks
10
€11,53
19
€10,88
29
€10,75
39
€10,62
49
€10,49
74
€10,36
99
€9,71
199
€9,58
249
€9,45
499
€9,32
999
€9,07
SKU:
SILKAC10M-CDX
Codex SILKAC10M Left Hand Steel / Bronze Lined Plain Female Rod End M10 Thread
- Regular price
- €12,95 ex VAT
- Sale price
- €12,95
- Regular price
-
Description
|
SIKAC..M Series Rod End Bearings:These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Technical
| d | = | 10mm |
| d2 max | = | 29mm |
| G | = | M10 |
| B | = | 14mm |
| C1 max | = | 10.5mm |
| h1 | = | 43mm |
| Max misalignment angle | = | 13 degrees |
| Dynamic load | = | 10 kN |
| Static load | = | 12.2 kN |
| dk | = | 19mm |
| d3 | = | 15mm |
| d4 max | = | 20mm |
| l3 min | = | 15mm |
| l4 max | = | 59mm |
| l5 | = | 6.5mm |
| l7 min | = | 14mm |
| r1 min | = | 0.3mm |
| w | = | 17mm |
| Weight | = | 0.072 kg |
