SKU: SIL60TXE-2LS-SKF

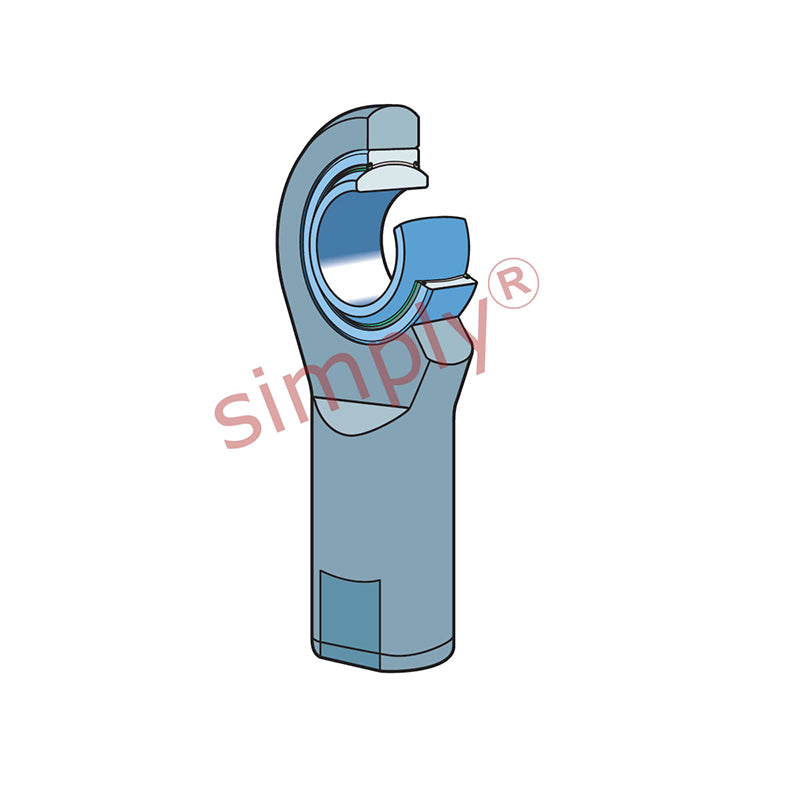

SKF SIL60TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Female Rod End M60x4 Thread
SKF SIL60TXE2LS Left Hand Steel / PTFE Fabric Lined Plain Female Rod End M60x4 Thread
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M60x4
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 60mm
- Material:
- PTFE Fabric Lined
Technical
Technical
| d | 60mm |
|---|---|
| d2 max | 137mm |
| G 6H | M60x4 |
| B | 44mm |
| C1 max | 39mm |
| h1 | 225mm |
| a | 6deg |
| Dynamic load C | 695 kN |
| Static load Co | 400 kN |
| Weight | 7.1 kg |
| dk | 80mm |
| d4 | 82mm |
| l3 min | 70mm |
| l4 max | 296mm |
| l5 | 35mm |
| l7 min | 73mm |
| r1 min | 1mm |
| w h14 | 70mm |
