SKU: SIL60C2RS-ISB

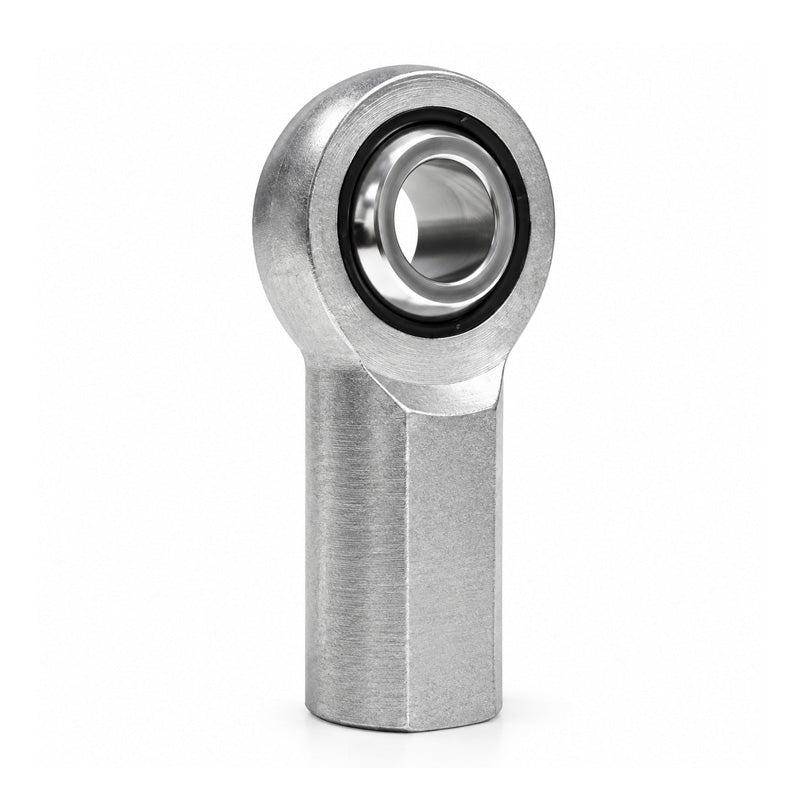

ISB SIL60C2RS Left Hand Maintenance Free Steel/PTFE Lined Plain Female Rod End M60 Thread
ISB SIL60C2RS Left Hand Maintenance Free Steel/PTFE Lined Plain Female Rod End M60 Thread
Equivalent to: SIL60C2RS
Out of stock
Share this product
Description
Description
SI - SA Series Rod End Bearings:: This series is constructed with C 45 improved and forged steel; the surfaces are protected from external corrosive agents, thanks to a galvanised zinc covering. They are available with internal and external threading, to the right and the left and they are provided with greasers or bores for lubrication.
- Brand / Quality:
- ISB-Good Quality
- Thread Size:
- M52x3
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Bore:
- 60
- Inside Diameter:
- 60
- Material:
- Steel/PTFE Lined

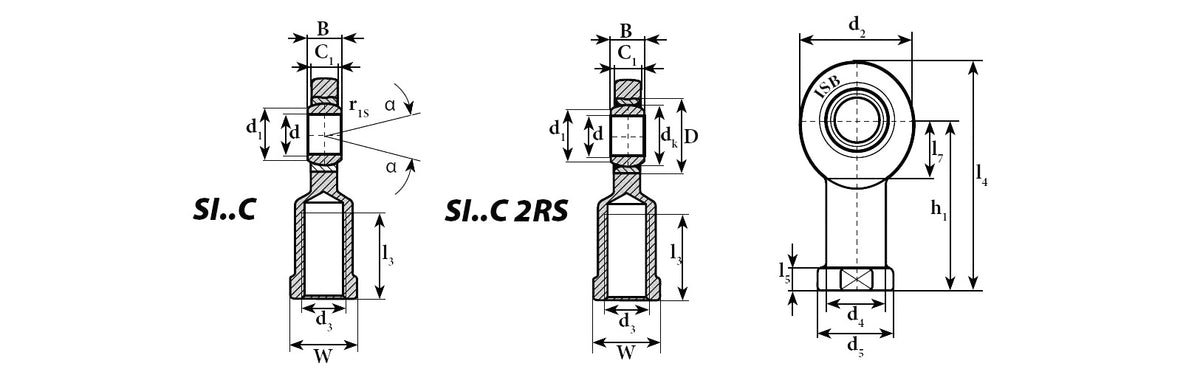

Technical
Technical
| d | 60mm |
|---|---|
| d1 | 66.8mm |
| d2 | 135mm |
| d3 | M 52x3mm |
| d4 | 70mm |
| d5 | 88mm |
| dk | 80mm |
| B | 44mm |
| C1 | 38mm |
| D | 90mm |
| h1 | 175mm |
| W | 75mm |
| I3 | 73mm |
| I4 | 242mm |
| I5 | 20mm |
| I7 | 75mm |
| α | 6° |
| r 1s min | 1Nmax Min -1 |
| Dynamic C | 345KN |
| Static C0 | 450KN |
| Weight | 5.5Kg |
