SKU: SI35ES2RS-ISB

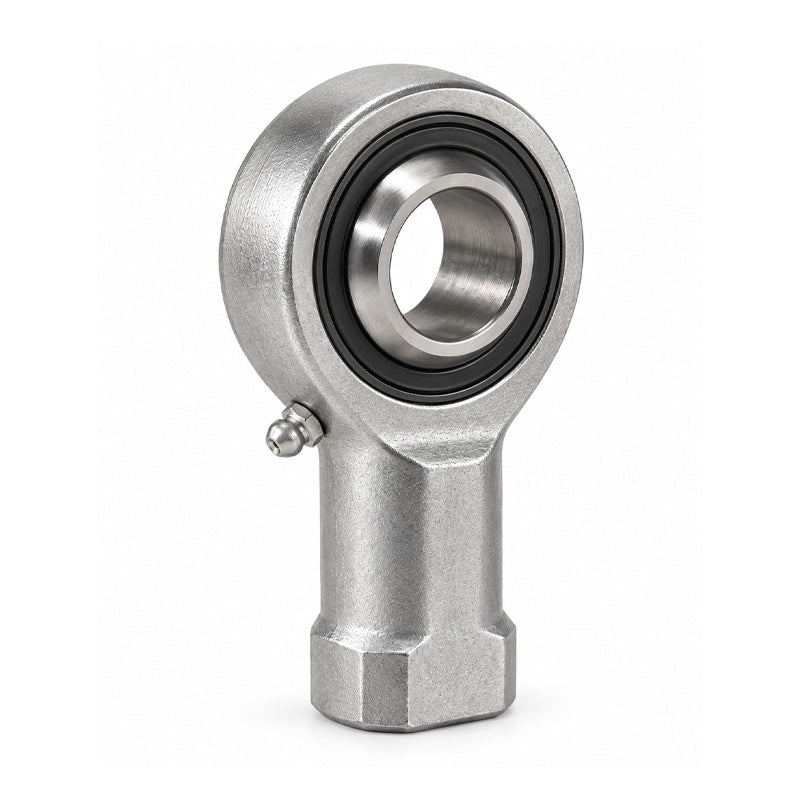

ISB SI35ES2RS Right Hand Maintenance Required Steel/Steel Plain Female Rod End M35 Thread
ISB SI35ES2RS Right Hand Maintenance Required Steel/Steel Plain Female Rod End M35 Thread
Equivalent to: SI35ES2RS
Out of stock
Share this product
Description
Description
SI - SA Series Rod End Bearings:: This series is constructed with C 45 improved and forged steel; the surfaces are protected from external corrosive agents, thanks to a galvanised zinc covering. They are available with internal and external threading, to the right and the left and they are provided with greasers or bores for lubrication.
- Brand / Quality:
- ISB-Good Quality
- Thread Size:
- M36x3
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Bore:
- 35
- Inside Diameter:
- 35
- Material:
- Steel/Steel
Technical
Technical
| d | 35mm |
|---|---|
| d1 | 39.7mm |
| d2 | 82mm |
| d3 | M 36x3mm |
| d4 | 47mm |
| d5 | 58mm |
| dk | 47mm |
| B | 25mm |
| C1 | 21mm |
| D | 55mm |
| h1 | 125mm |
| W | 50mm |
| I3 | 60mm |
| I4 | 166mm |
| I5 | 15mm |
| I7 | 42mm |
| α | 6° |
| r 1s min | 0.6Nmax Min -1 |
| Dynamic C | 80KN |
| Static C0 | 146KN |
| Weight | 1.3Kg |
