SKU: SI12E-SKF

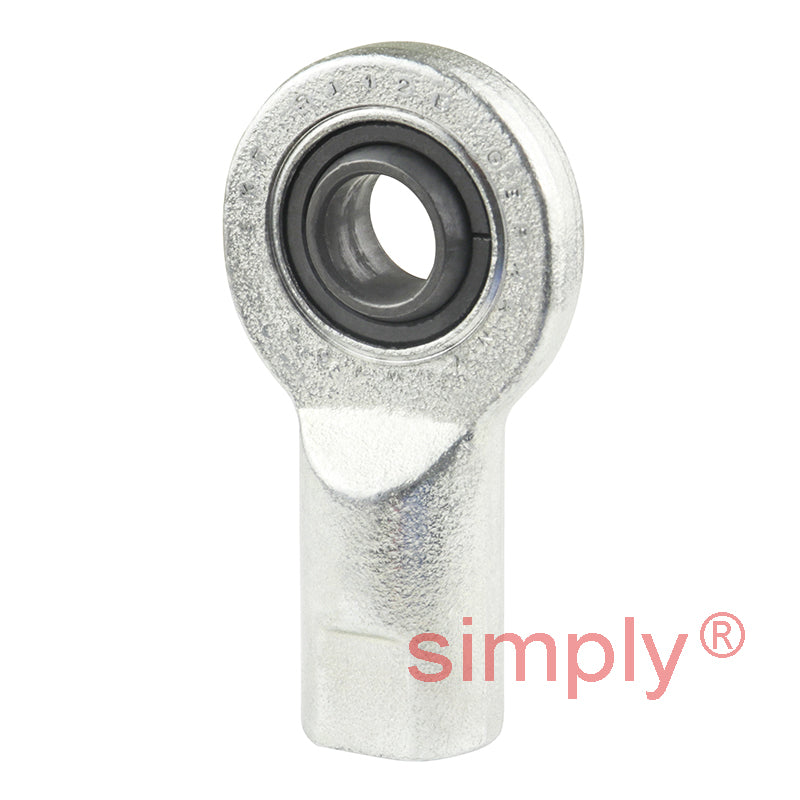

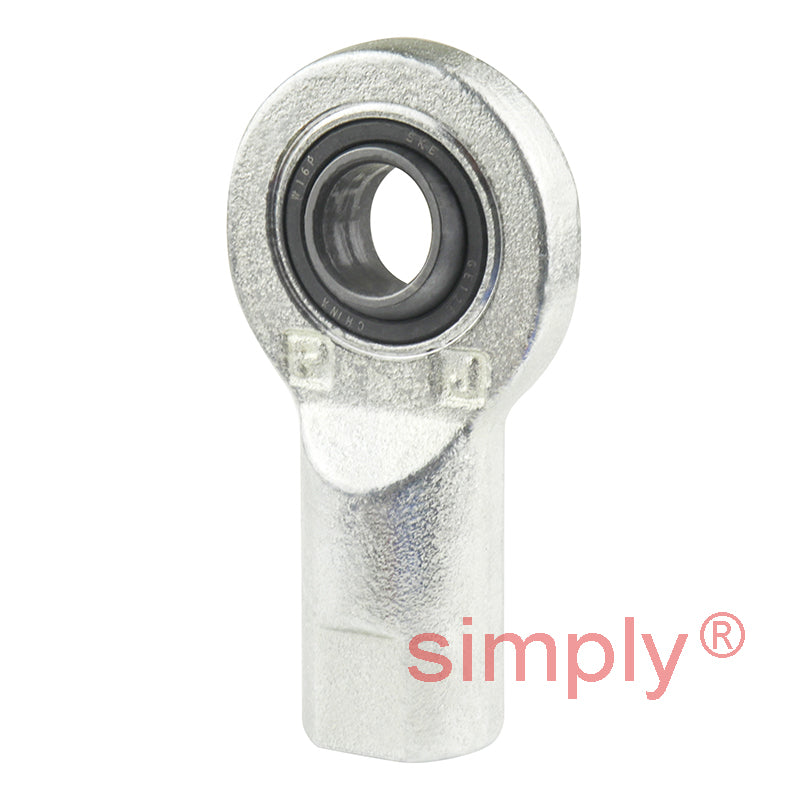

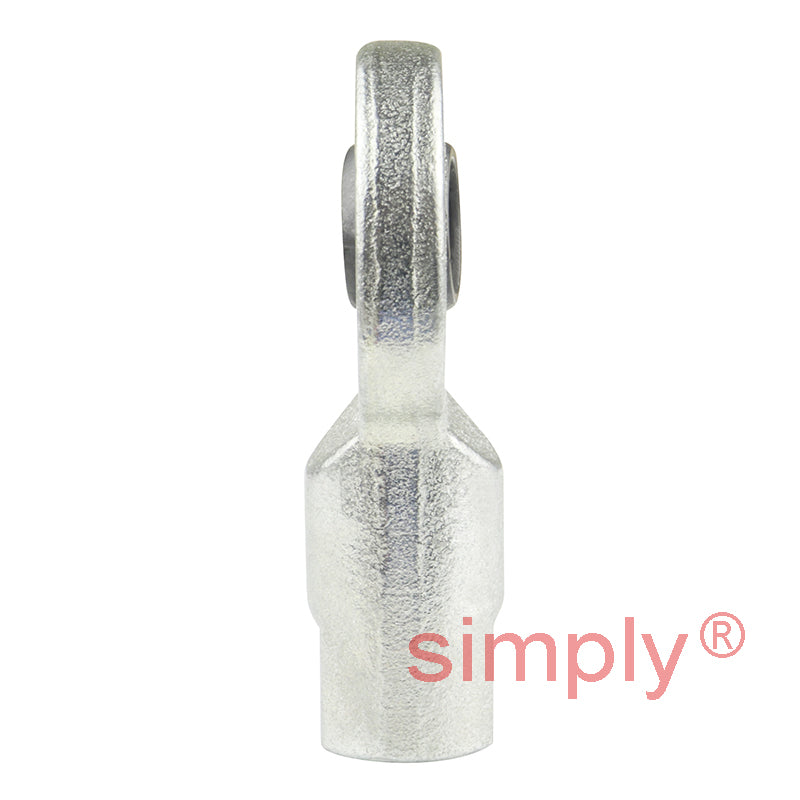

SKF SI12E Right Hand Steel / Steel Plain Female Rod End M12 Thread
SKF SI12E Right Hand Steel / Steel Plain Female Rod End M12 Thread
Regular price
€39,95
ex VAT
Regular price
Sale price
€39,95
ex VAT
Equivalent to: GIR12DO GIR12E
In stock
Price Break
10+
€29,79
19+
€28,12
29+
€27,78
39+
€27,45
49+
€27,11
74+
€26,78
99+
€25,11
199+
€24,77
249+
€24,44
499+
€24,10
999+
€23,43
Quantity
Couldn't load pickup availability
Description
Description
|
SKF SI..E Series Rod End Bearings: This series is classed as rod end bearing requiring maintenance. Comprising of sliding contact surfaces of steel against steel these rod end bearings are unsealed and require maintenance from time to time, there is no dedicated lubrication point provided thus lubrication in the form of re-lubrication from the sides of the ball is required. These are metric sized female rod end bearings. They are made of heat treatable C45V steel and zinc coated and chromatized and will operate within -50 deg C to + 200 deg C. Application: Suitable for heavy static or alternating loads, shock loads. Benefits: Re-lubricate-able, cleanable. |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M12
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 12mm

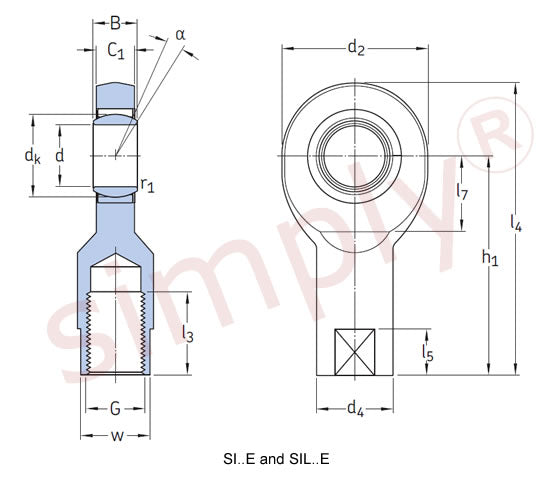

Technical
Technical
| d | 12mm |
|---|---|
| d2 max | 35mm |
| G | M12 |
| B | 10mm |
| C1 max | 8.5mm |
| h | 50mm |
| a | 10deg |
| Dynamic load C | 10.8 kN |
| Static load Co | 25.5 kN |
| Weight | 0.11 kg |
| dk | 18mm |
| d4 | 19mm |
| l3 min | 18mm |
| l4 max | 69mm |
| l5 | 12mm |
| l7 min | 17mm |
| r1 min | 0.3mm |
| w h14 | 17mm |
