SKU: SG047XP0

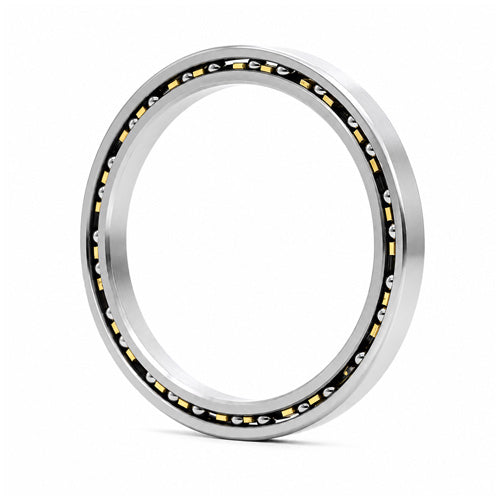

Silverthin SG047XP0 Thin Section Four Point Contact Ball Bearing 4.75x6.75x1 inch - Allow 7-10 Days
Silverthin SG047XP0 Thin Section Four Point Contact Ball Bearing 4.75x6.75x1 inch - Allow 7-10 Days
Equivalent to: KG047XP0
Out of stock
Description
Description
|
Silverthin Thin Section Four-Point Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with gothic arch raceways creating four contact points between the balls and the raceways. This design is excellent for moment loading and reversing axial loading. These bearings can be used for other light loading conditions but is not recommended for pure radial loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal of moment loading, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 120.65mm = 4-3/4 inch
- Outside Diameter:
- 171.45mm = 6-3/4 inch
- Width:
- 25.4mm = 1 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 4.75 inch |
|---|---|
| D | 6.75 inch |
| Width | 1 inch |
| L1 | 5.492 inch |
| L2 | 6.008 inch |
| L3 | 6.239 inch |
| Static Radial Load | 41.395 kN |
| Dynamic Radial Load | 21.787 kN |
| Static Thrust Load | 103.479 kN |
| Dynamic Thrust Load | 54.42 kN |
| Static Moment Load | 118.968 kN |
| Dynamic Moment Load | 62.604 kN |
| Weight | 1.8597kg |
