SKU: SG042XP0

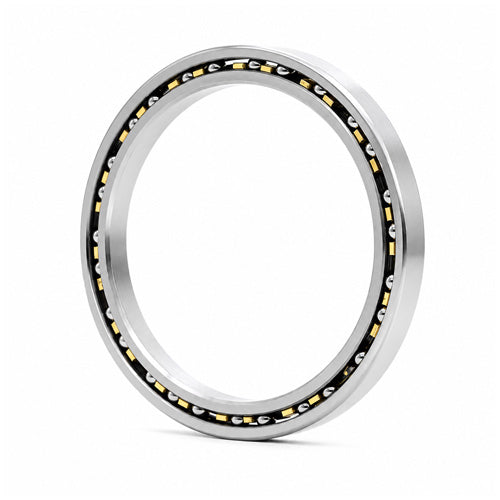

Silverthin SG042XP0 Thin Section Four Point Contact Ball Bearing 4.25x6.25x1 inch - Allow 7-10 Days
Silverthin SG042XP0 Thin Section Four Point Contact Ball Bearing 4.25x6.25x1 inch - Allow 7-10 Days
Equivalent to: KG042XP0
Out of stock
Description
Description
|
Silverthin Thin Section Four-Point Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with gothic arch raceways creating four contact points between the balls and the raceways. This design is excellent for moment loading and reversing axial loading. These bearings can be used for other light loading conditions but is not recommended for pure radial loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal of moment loading, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 107.95mm = 4-1/4 inch
- Outside Diameter:
- 158.75mm = 6-1/4 inch
- Width:
- 25.4mm = 1 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

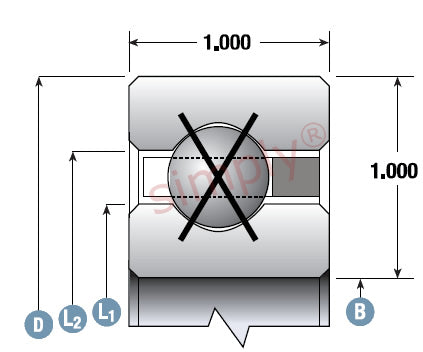

| B | 4.25 inch |
|---|---|
| D | 6.25 inch |
| Width | 1 inch |
| L1 | 4.992 inch |
| L2 | 5.508 inch |
| L3 | 5.741 inch |
| Static Radial Load | 36.529 kN |
| Dynamic Radial Load | 20.053 kN |
| Static Thrust Load | 91.278 kN |
| Dynamic Thrust Load | 50.105 kN |
| Static Moment Load | 95.868 kN |
| Dynamic Moment Load | 52.582 kN |
| Weight | 1.7236kg |
