SKU: SFT16EC-RHP

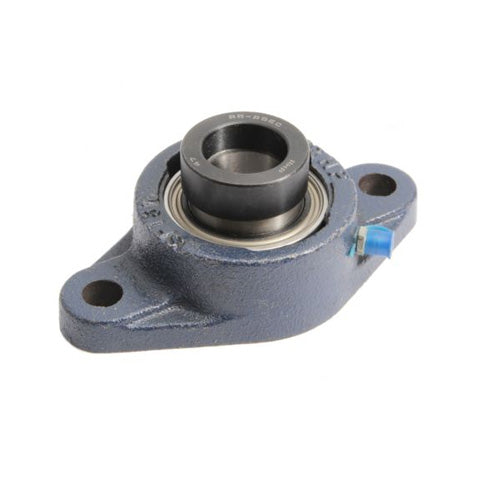

RHP SFT16EC Two Bolt Oval Cast Iron Flange Housing 16mm Bore Insert
RHP SFT16EC Two Bolt Oval Cast Iron Flange Housing 16mm Bore Insert
Out of stock
Share this product
Description
Description
|
RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 16mm
- Style:
- SFT
- Bolt Hole Centres:
- 76.5mm
Technical
Technical
| Bore | 16mm |
|---|---|
| L | 52.5mm |
| H | 98.5mm |
| J | 76.5mm |
| G | 10mm |
| A | 24.6mm |
| A2 | 39.01mm |
| A4 | 9.5mm |
| B2 | 28.54mm |
| s1 | 6.55mm |
| d2 | 28.58mm |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1217-16ECG+insonly">1217-16ECG Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
