SKU: SF9T-MB

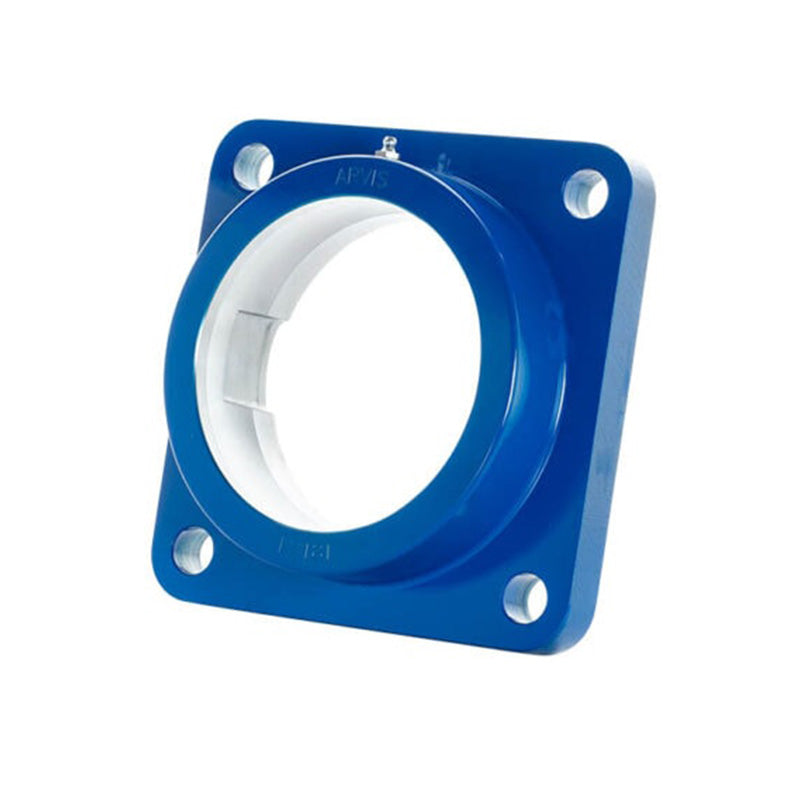

Major Brand SF9T Metric Steel Four Bolt Square Flanged Housing for Bearings with 100mm Outer Diameter - Allow 3-4 Weeks
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
Steel Four Bolt flanged Housing: This durable and versatile bearing unit is designed for reliable shaft support in a wide range of industrial applications. Constructed from high-quality steel for strength and stability and a grease nipple for easy re-lubrication and extended service life. Its four-bolt mounting design ensures quick installation and secure positioning, making it ideal for machinery, conveyors, and general engineering use. If required these housing units can be supplied with a pre-fitted bearing insert secured with grub screws for a firm hold, please contact our sales department for more information.
Benefits: Zero downtime, heavy duty, durable
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 100mm
- Style:
- SF
- Bolt Hole Centres:
- 130mm

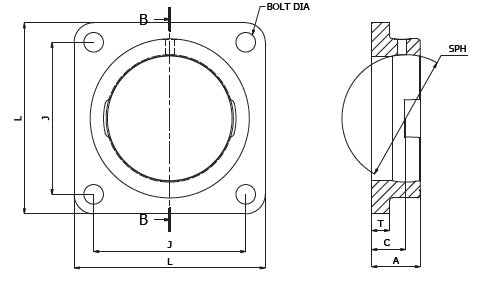

Technical
| PH | 100mm |
|---|---|
| J - Bolt Hole Centre | 130mm |
| L | 161.9mm |
| C | 30mm |
| A | 44mm |
| T | 17.5mm |
| Bolt Diameter | 16mm |
