SKU: SF250AR0

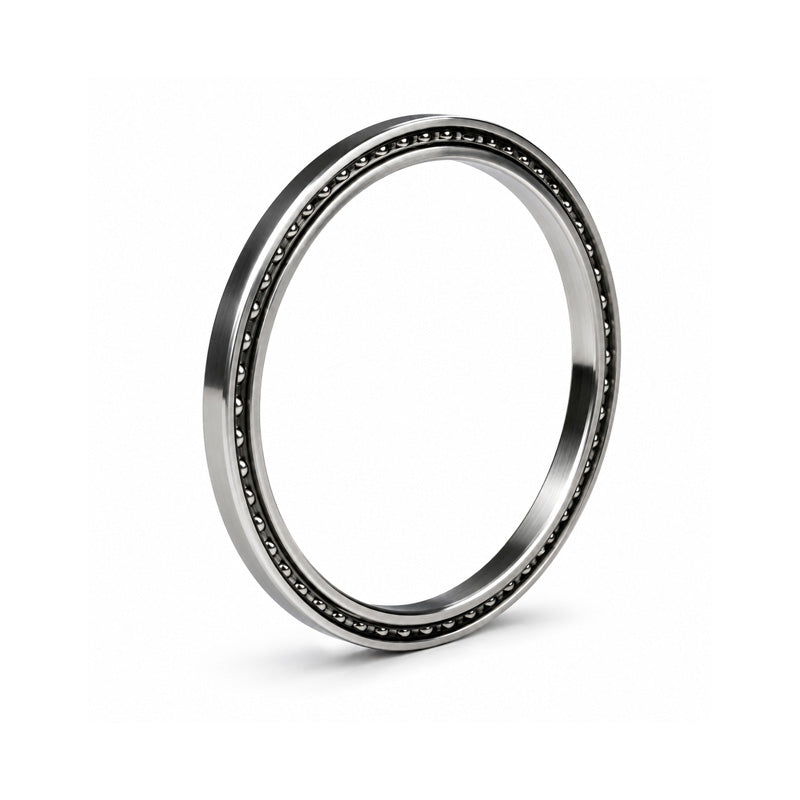

Silverthin SF250AR0 Thin Section Angular Contact Ball Bearing 25x26.5x0.75 inch - Allow 7-10 Days
Silverthin SF250AR0 Thin Section Angular Contact Ball Bearing 25x26.5x0.75 inch - Allow 7-10 Days
Equivalent to: KF250AR0
Out of stock
Description
Description
|
Silverthin Thin Section Angular Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed to accommodate axial loads. These bearing also support moment loads and reversing axial loads when used in pairs. These bearings also work well in radial or combined radial-thrust applications. Made from 52100 chrome steel and contains a brass circular pocket separator. Benefits: Compact, lightweight, accommodates radial and axial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 635mm = 25 inch
- Outside Diameter:
- 673.1mm = 26-1/2 inch
- Width:
- 19.05mm = 3/4 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 25 inch |
|---|---|
| D | 26.5 inch |
| Width | 0.75 inch |
| L1 | 25.555 inch |
| L2 | 25.945 inch |
| L3 | 26.085 inch |
| Static Radial Load | 154.367 kN |
| Dynamic Radial Load | 40.225 kN |
| Static Thrust Load | 445.73 kN |
| Dynamic Thrust Load | 116.107 kN |
| Weight | 4.9442kg |
