SKU: SF200AR0

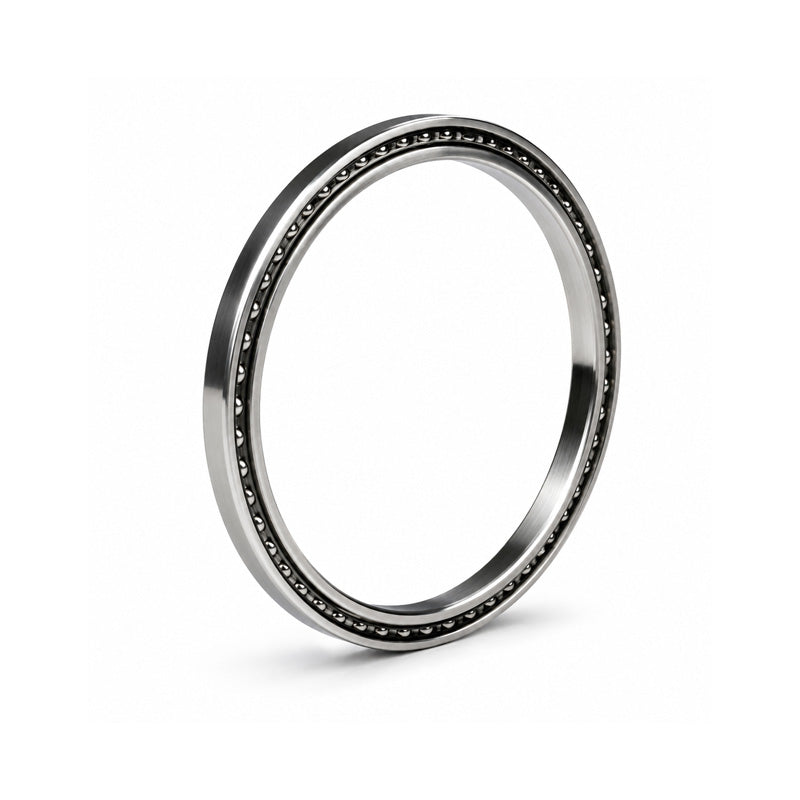

Silverthin SF200AR0 Thin Section Angular Contact Ball Bearing 20x21.5x0.75 inch - Allow 7-10 Days
Silverthin SF200AR0 Thin Section Angular Contact Ball Bearing 20x21.5x0.75 inch - Allow 7-10 Days
Equivalent to: KF200AR0
Out of stock
Description
Description
|
Silverthin Thin Section Angular Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed to accommodate axial loads. These bearing also support moment loads and reversing axial loads when used in pairs. These bearings also work well in radial or combined radial-thrust applications. Made from 52100 chrome steel and contains a brass circular pocket separator. Benefits: Compact, lightweight, accommodates radial and axial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 508mm = 20 inch
- Outside Diameter:
- 546.1mm = 21-1/2 inch
- Width:
- 19.05mm = 3/4 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

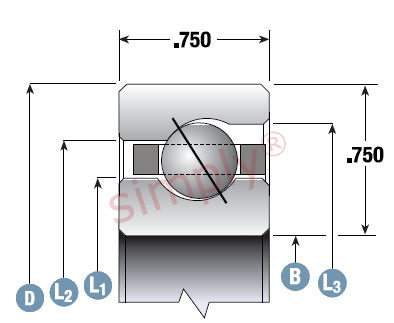

| B | 20 inch |
|---|---|
| D | 21.5 inch |
| Width | 0.75 inch |
| L1 | 20.555 inch |
| L2 | 20.945 inch |
| L3 | 21.092 inch |
| Static Radial Load | 125.004 kN |
| Dynamic Radial Load | 34.976 kN |
| Static Thrust Load | 360.853 kN |
| Dynamic Thrust Load | 100.899 kN |
| Weight | 4.037kg |
